NF Series Chemical resistant / Oil resistant type

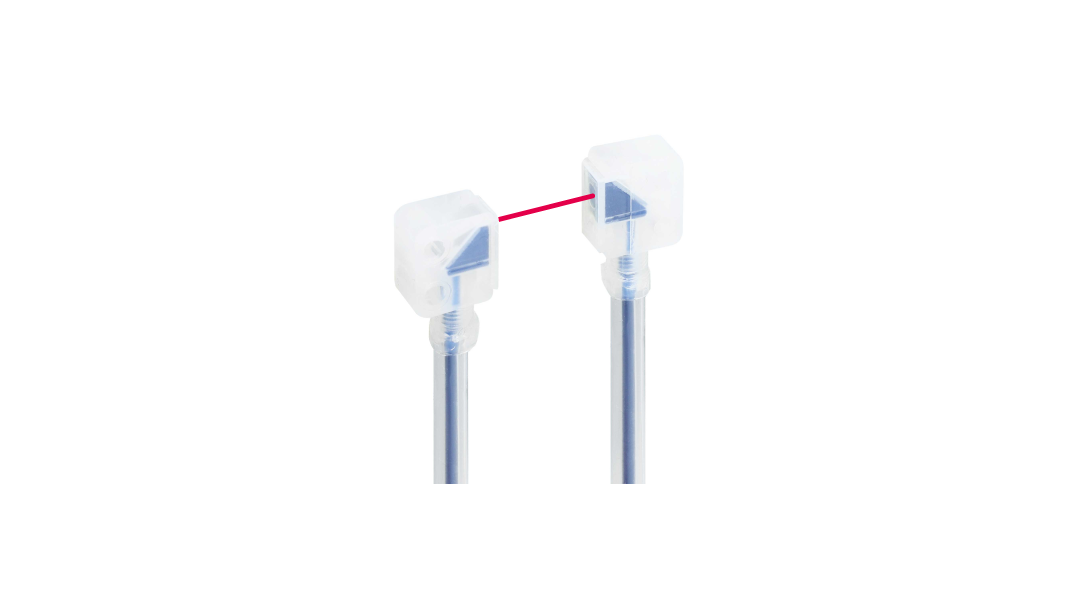

NF-TY05-5

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	51711
Model	NF-TY05-5
Category	Chemical resistant Oil resistant type
Type	Square Chemical resistant
Detection method	Through-beam type
Optical axis direction	Side view
Shape of fiber head	W7 x H15 x D13 mm
Sleeve	-
Optical axis diameter	ø1.0 mm
Fiber length	5 m
Free-cut	Possible
Min. bending radius	R25 mm
Degree of protection	IP67 (Excluding coated surfaces that have been cut)
Ambient temperature	0 ... +60°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 60 g
Included items	Fiber cutter

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	9,600 (8 ms) 9,600 (2 ms) 9,600 (1 ms) 9,600 (500 μs) 8,275 (250 μs) 5,300 (70 μs) 1,765 (16 μs/22 μs)		9,600 (4 ms) 9,600 (1 ms) 7,415 (250 μs) 2,755 (50 μs)

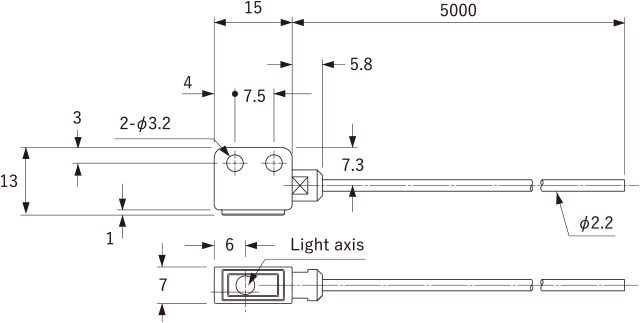

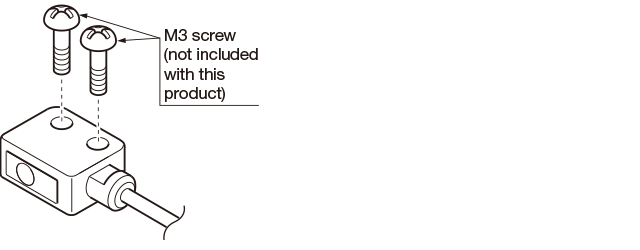

Unit: mm

- When cutting the protective tubes, take care not to damage the fiber sheath.
- Amounts of light may decrease during extended periods of usage under conditions with high heat or humidity.
- Water droplets adhered to the window will influence detection performance. Avoid use in areas where direct contact with water could be made. Also pay sufficient attention to any condensation that has formed on the pipe exterior.
- Avoid use with the chemicals listed below.
  Chemicals that may erode PFA including fused alkali metals (sodium, potassium, lithium, etc.), fluorine gas (F₂), CIF₃, OF₂ (including gaseous form), etc. Also, chemicals with high permeability including high temperature hydrofluoric acid, nitric acid, chlorine, etc.

Type		Part No.	Model
Fiber cutter		20228	NFC-F01

Please refer to the Correct Use of all Fiber-Optic Cables.
