NF Series Chemical resistant / Oil resistant type

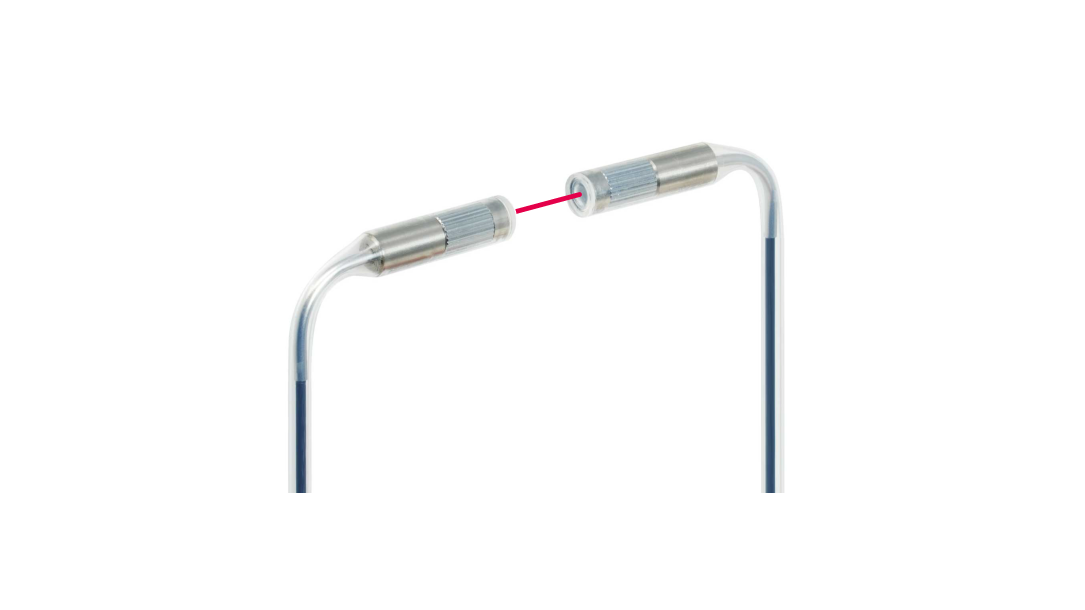

NF-TY03-TF3

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	51341
Model	NF-TY03-TF3
Category	Chemical resistant Oil resistant type
Type	ø6 Elbow type Chemical resistant
Detection method	Through-beam type
Optical axis direction	Straight view
Shape of fiber head	ø6 mm 20 mm long
Sleeve	-
Optical axis diameter	ø5.0 mm
Fiber length	3 m (Fluoroplastic tube)
Free-cut	Possible
Min. bending radius	R20 mm
Degree of protection	IP67 (Excluding coated surfaces that have been cut)
Ambient temperature	-55 ... +70°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 118 g
Included items	Fiber cutter, ø1.3 mm Fiber adapter x 2

● The optical axis diameter is an approximate value.

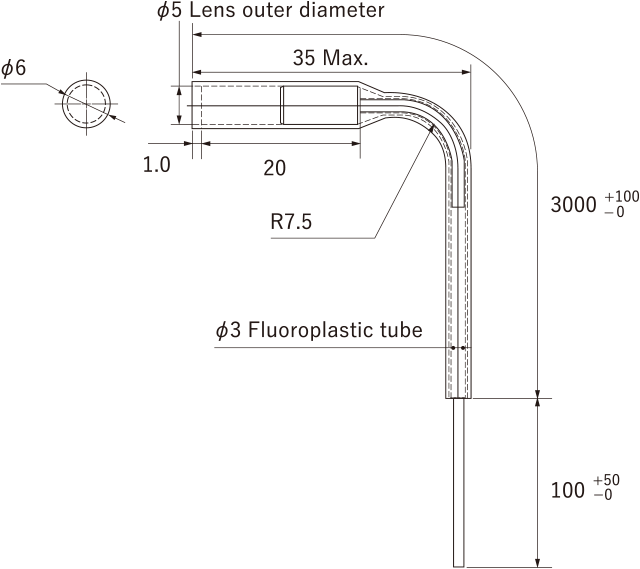

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	5,600 (8 ms) 5,600 (2 ms) 5,600 (1 ms) 5,500 (500 μs) 4,565 (250 μs) 2,925 (70 μs) 975 (16 μs/22 μs)		5,600 (4 ms) 5,450 (1 ms) 3,795 (250 μs) 1,350 (50 μs)

Unit: mm

- When cutting the protective tubes, take care not to damage the fiber sheath.
- Amounts of light may decrease during extended periods of usage under conditions with high heat or humidity.
- Water droplets adhered to the window will influence detection performance. Avoid use in areas where direct contact with water could be made. Also pay sufficient attention to any condensation that has formed on the pipe exterior.
- Avoid use with the chemicals listed below.
  Chemicals that may erode PFA including fused alkali metals (sodium, potassium, lithium, etc.), fluorine gas (F₂), CIF₃, OF₂ (including gaseous form), etc. Also, chemicals with high permeability including high temperature hydrofluoric acid, nitric acid, chlorine, etc.

Type		Part No.	Model
Fiber cutter		20228	NFC-F01
Fiber adapter ø1.3 mm		20189	BF-WLL160-1.3

Please refer to the Correct Use of all Fiber-Optic Cables.
