NF Series Chemical resistant / Oil resistant type

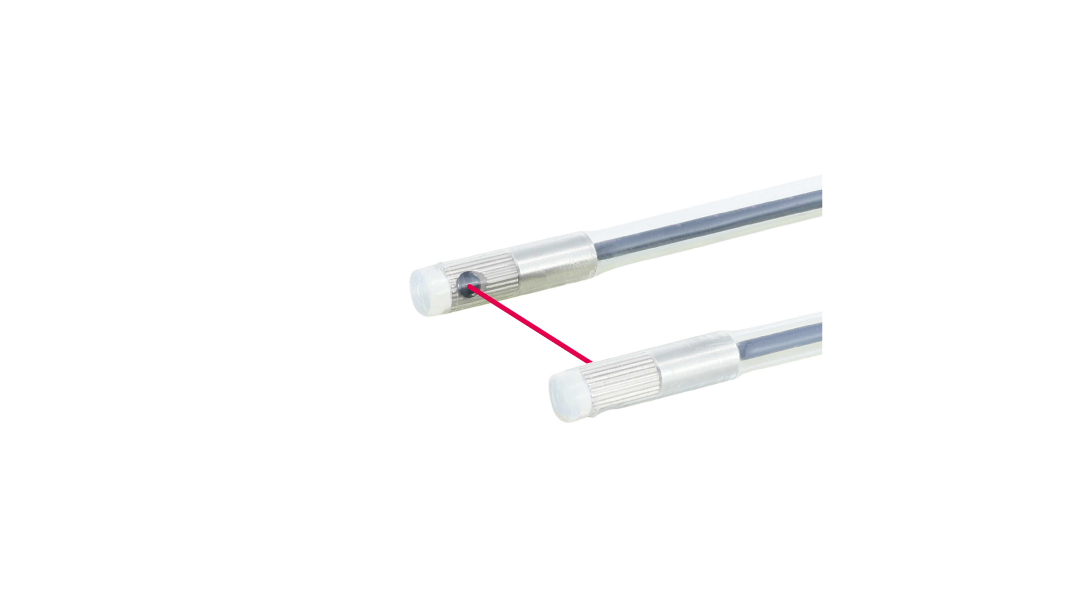

NF-TY02

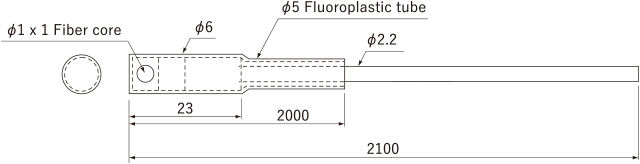

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	12881
Model	NF-TY02
Category	Chemical resistant Oil resistant type
Type	ø6 Chemical resistant
Detection method	Through-beam type
Optical axis direction	Side view
Shape of fiber head	ø6 mm 23 mm long
Sleeve	-
Optical axis diameter	ø1.0 mm
Fiber length	2 m (Fluoroplastic tube)
Free-cut	Possible
Min. bending radius	Fiber R25 mm Fluoroplastic tube R60 mm
Degree of protection	IP67 (Excluding coated surfaces that have been cut)
Ambient temperature	-40 ... +70°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight
Included items

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,600 (8 ms) 3,600 (2 ms) 3,375 (1 ms) 3,000 (500 μs) 2,490 (250 μs) 1,555 (70 μs) 530 (16 μs/22 μs)		3,600 (4 ms) 3,145 (1 ms) 2,255 (250 μs) 840 (50 μs)

Unit: mm

- When cutting the protective tubes, take care not to damage the fiber sheath.
- Amounts of light may decrease during extended periods of usage under conditions with high heat or humidity.
- Water droplets adhered to the window will influence detection performance. Avoid use in areas where direct contact with water could be made. Also pay sufficient attention to any condensation that has formed on the pipe exterior.
- Avoid use with the chemicals listed below.
  Chemicals that may erode PFA including fused alkali metals (sodium, potassium, lithium, etc.), fluorine gas (F₂), CIF₃, OF₂ (including gaseous form), etc. Also, chemicals with high permeability including high temperature hydrofluoric acid, nitric acid, chlorine, etc.

Please refer to the Correct Use of all Fiber-Optic Cables.
