Specifications
| Part No. | 20103 |
|---|---|

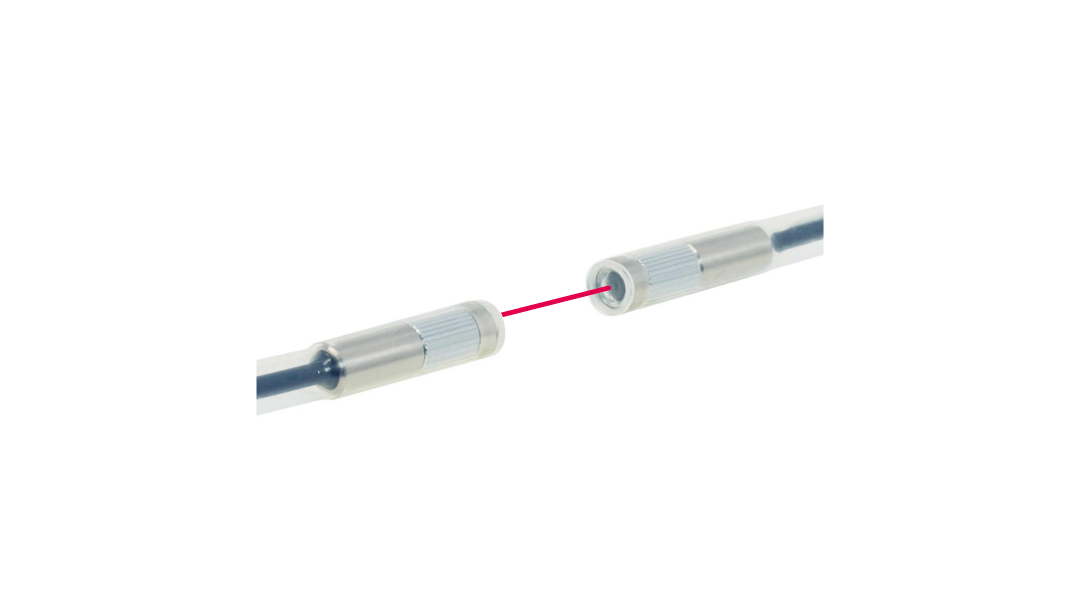

| Model | NF-TY01-3 |
| Category |
Chemical resistant Oil resistant type |
| Type |
ø6 Chemical resistant |
| Detection method | Through-beam type |
| Optical axis direction | Straight view |
| Shape of fiber head |
ø6 mm 20 mm long |
| Sleeve | - |
| Optical axis diameter | ø5.0 mm |
| Fiber length |
Fiber R25 mm Fluoroplastic tube R60 mm |
| Free-cut | Possible |
| Min. bending radius | R60 mm |
| Degree of protection | IP67 (Excluding coated surfaces that have been cut) |
| Ambient temperature |
-40 ... +105°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
5,600 (8 ms) 4,835 (2 ms) 3,420 (1 ms) 3,045 (500 μs) 2,525 (250 μs) 1,530 (70 μs) 535 (16 μs/22 μs) |
|
5,400 (4 ms) 2,875 (1 ms) 1,855 (250 μs) 775 (50 μs) |

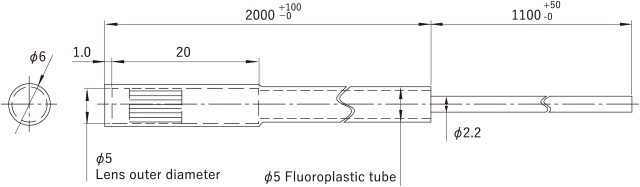

Dimensions
Unit: mm
Mounting Method
Usage notes
-
- When cutting the protective tubes, take care not to damage the fiber sheath.
- Amounts of light may decrease during extended periods of usage under conditions with high heat or humidity.
- Water droplets adhered to the window will influence detection performance. Avoid use in areas where direct contact with water could be made. Also pay sufficient attention to any condensation that has formed on the pipe exterior.
- Avoid use with the chemicals listed below.
Chemicals that may erode PFA including fused alkali metals (sodium, potassium, lithium, etc.), fluorine gas (F2), CIF3, OF2 (including gaseous form), etc. Also, chemicals with high permeability including high temperature hydrofluoric acid, nitric acid, chlorine, etc.
