Specifications
| Part No. | 61768 |
|---|---|
| Model | NF-TR4CF |
| Category |
Chemical resistant Oil resistant type |
| Type |
M4 Nut type Oil resistant |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
M4 W7 x H9 x D16 mm |
| Sleeve | - |
| Optical axis diameter | ø2.0 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | IP68G |
| Ambient temperature |
-25 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | - |
| Weight | |
| Included items | Fiber cutter, M4 hex nat x 2, Toothed washer x 2 |
Sensing Distance by Response Time
Unit: mm

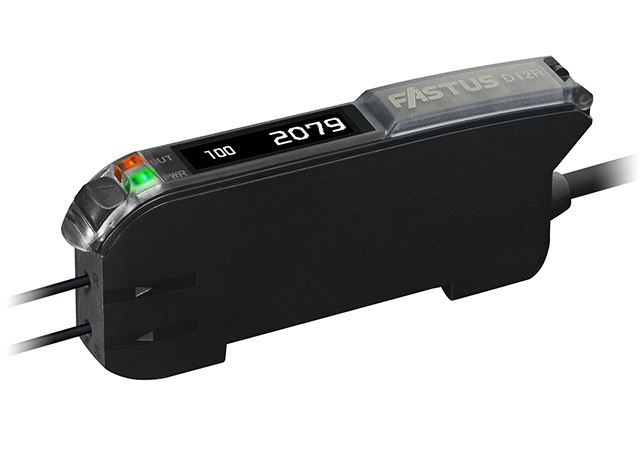

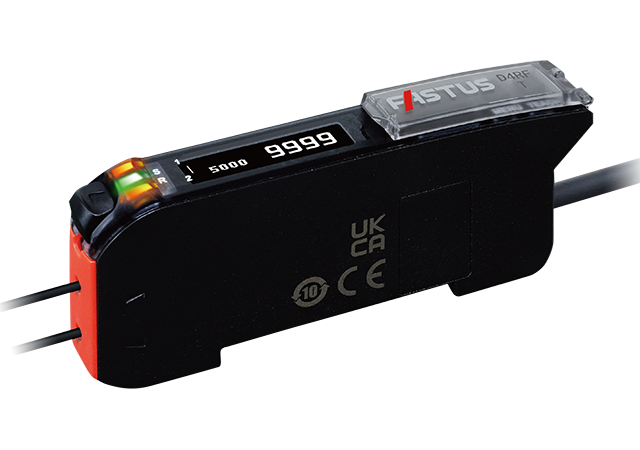

| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,500 (8 ms) 3,500 (2 ms) 3,500 (1 ms) 3,500 (500 μs) 3,500 (250 μs) 3,000 (70 μs) 900 (16 μs/22 μs) |
|
3,500 (4 ms) 3,500 (1 ms) 2,925 (250 μs) 1,015 (50 μs) |

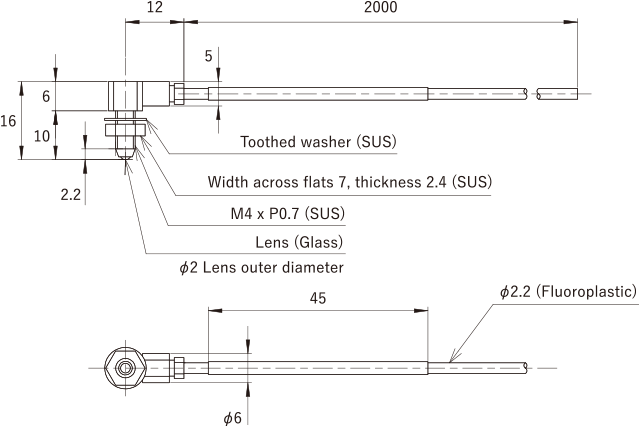

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|

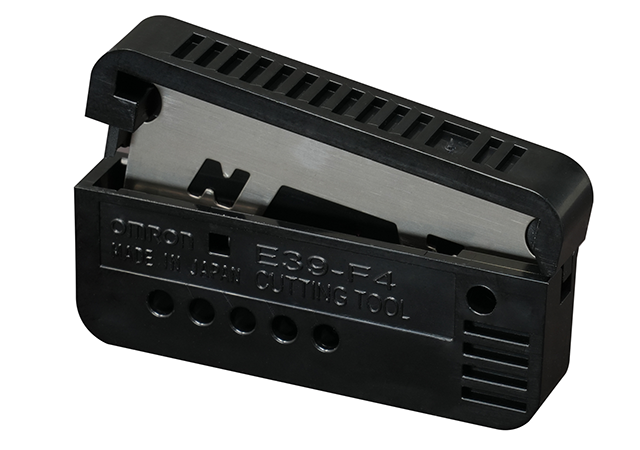

| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
