NF Series Chemical resistant / Oil resistant type

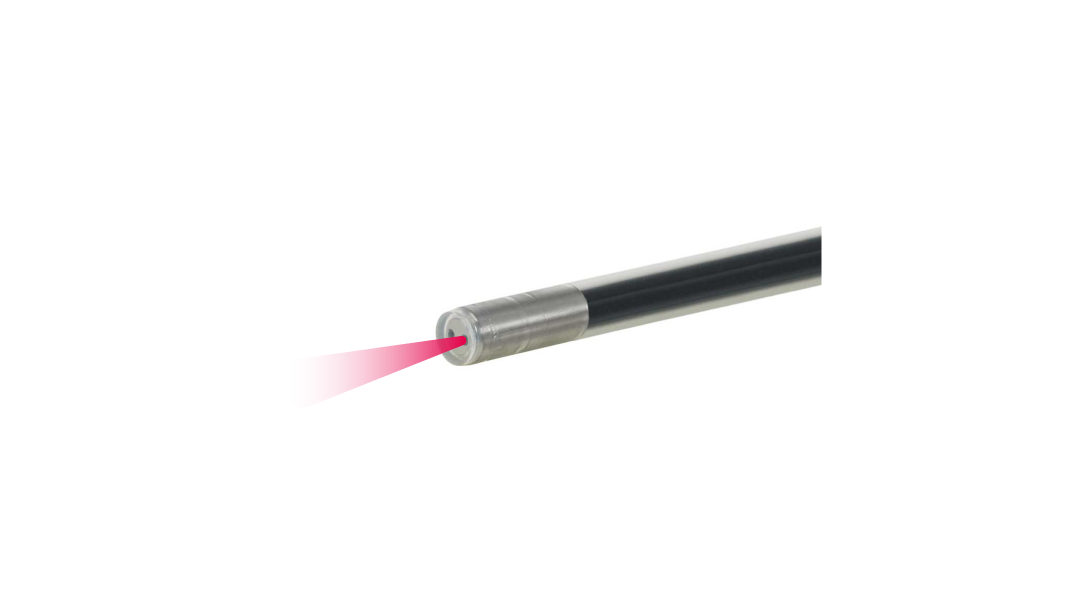

NF-DY01

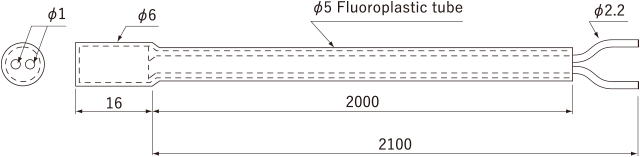

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	12892
Model	NF-DY01
Category	Chemical resistant Oil resistant type
Type	ø6 Chemical resistant
Detection method	Diffuse-reflective type
Optical axis direction	Straight view
Shape of fiber head	ø6 mm 16 mm long
Sleeve	-
Optical axis diameter	-
Fiber length	2 m (Fluoroplastic tube)
Free-cut	Possible
Min. bending radius	Fiber R25 mm Fluoroplastic tube R60 mm
Degree of protection	IP67 (Excluding coated surfaces that have been cut)
Ambient temperature	-40 ... +105°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight
Included items	Fiber cutter

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	450 (8 ms) 450 (2 ms) 435 (1 ms) 390 (500 μs) 355 (250 μs) 250 (70 μs) 100 (16 μs/22 μs)		450 (4 ms) 430 (1 ms) 320 (250 μs) 120 (50 μs)

● The values on 500 x 500 mm white paper

Unit: mm

- Avoid use with the chemicals listed below.
  Chemicals that may erode PFA including fused alkali metals (sodium, potassium, lithium, etc.), fluorine gas (F₂), CIF₃, OF₂ (including gaseous form), etc. Also, chemicals with high permeability including high temperature hydrofluoric acid, nitric acid, chlorine, etc.
- In order to protect Fiber-Optic Sensors, keep the heat resistant fiber part at least 150 mm from the boundary of the ambient temperature side as shown in the diagram below.
- Do not directly expose Fiber-Optic Sensors to radiation heat or hot air.

- When cutting the protective tubes, take care not to damage the fiber sheath.
- Amounts of light may decrease during extended periods of usage under conditions with high heat or humidity.
- Water droplets adhered to the window will influence detection performance. Avoid use in areas where direct contact with water could be made. Also pay sufficient attention to any condensation that has formed on the pipe exterior.

Type		Part No.	Model
Fiber cutter		20228	NFC-F01

Please refer to the Correct Use of all Fiber-Optic Cables.
