Product Selection Guide
Selection Procedure
The main procedure for selecting a laser displacement sensor is explained below.

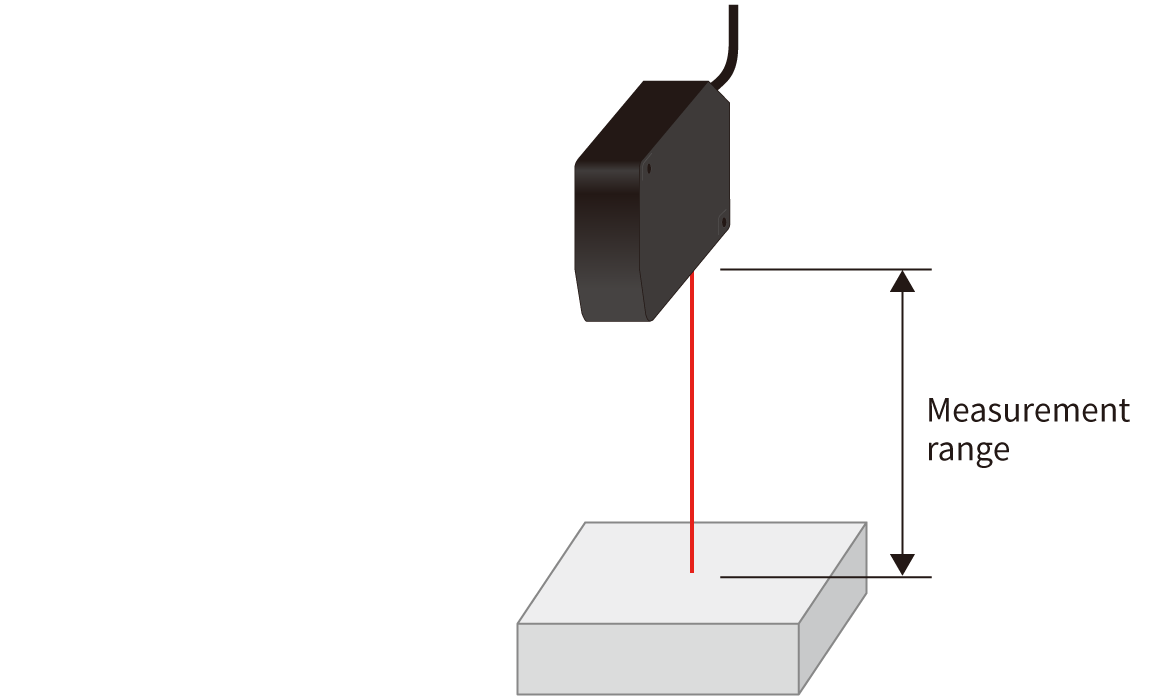

Step1 Measurement Range
Determine the required measurement range from factors such as the distance to the object and its size.
Step2 Measurement Details
Check the color, size, tilt, and surface conditions of the workpieces.
| Workpiece information | Tips |
|---|---|
| Color | Reflection rate size. Transparent, opaque, etc. |
| Size | Does the workpiece size comply with the sensor's measurement range? |
| Tilt | A large tilt tends to lead to unstable measurements. |
| Surface Conditions | Rough surfaces lead to variations in the measurements. |

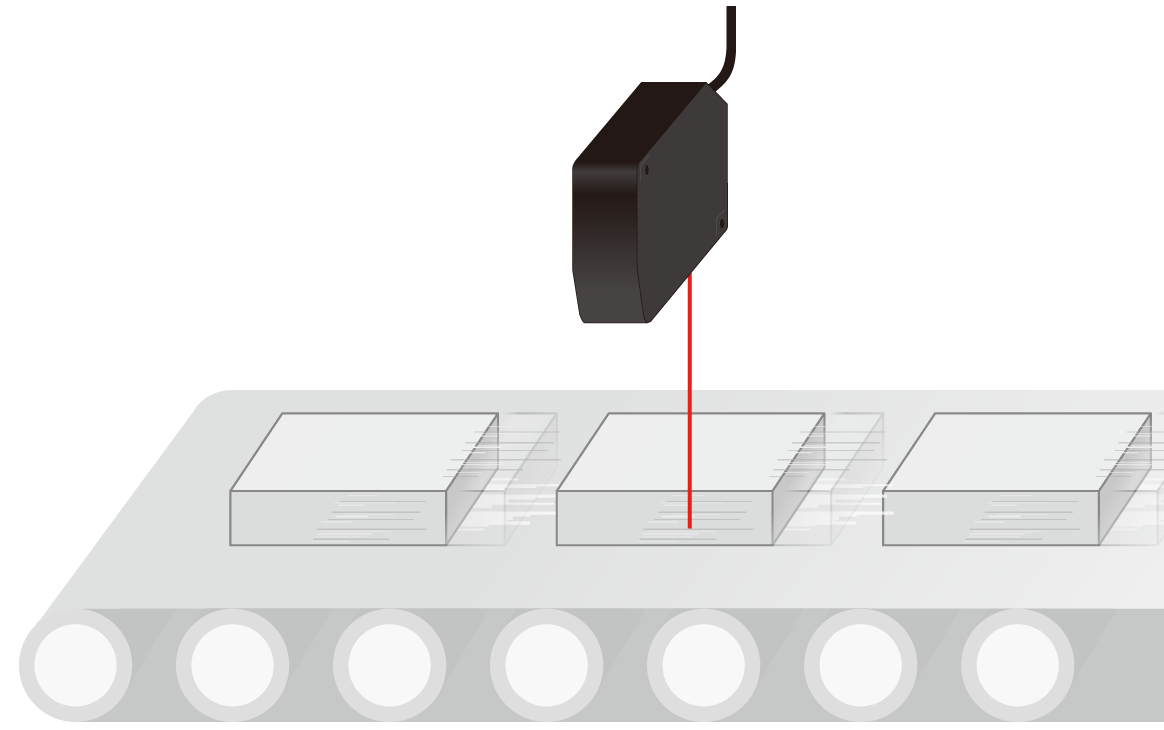

Step3 Responsiveness
Check the movement speed and takt of the line on which measurements will actually be performed. If high-speed response is required, select a model that can perform high-speed sampling.
Step4 Accuracy
Check the movement speed and takt of the line on which measurements will actually be performed. If high-speed response is required, select a model that can perform high-speed sampling.
