Circuit Diagram

(CDA-DM2 amplifier unit)

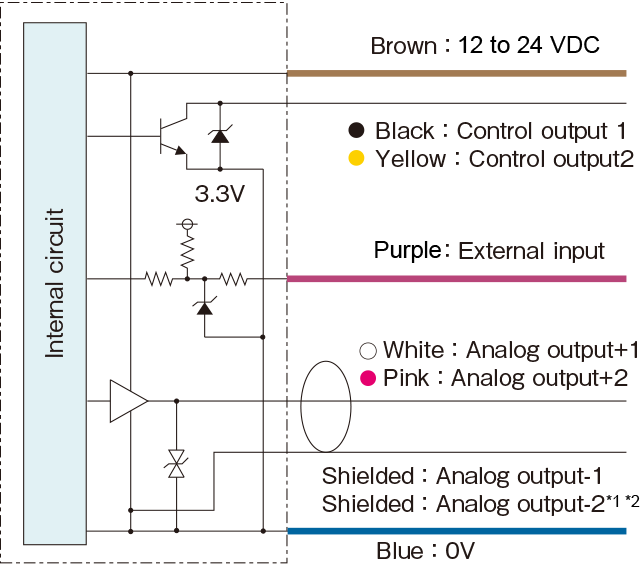

• With the NPN setting



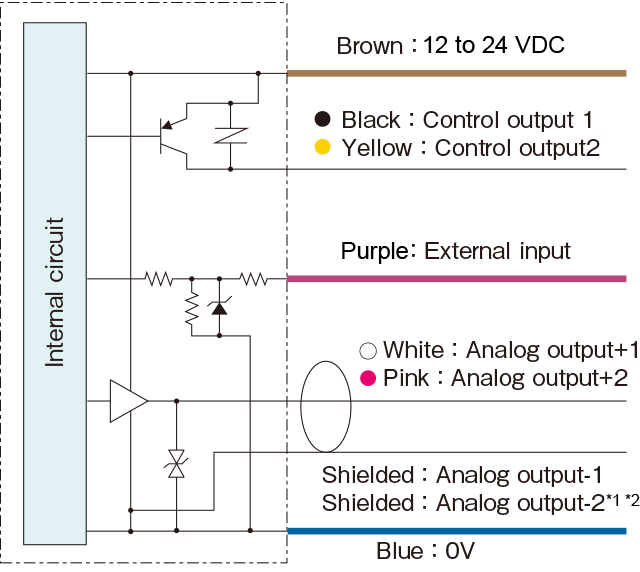

• With the PNP setting



*1. Use shielded cables for analog output (+) and analog output (-), and wire as a pair up to the analog input device.
*2. If there is a potential difference between the analog output (-) and the GND of the external device, connect the analog output (-) to the GND of the external device as shown below.
