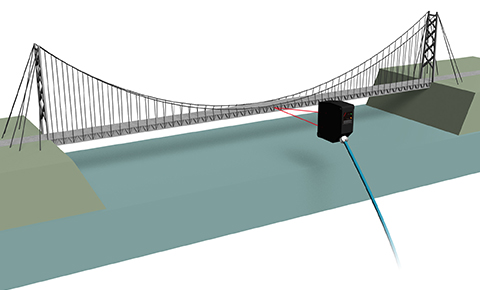

Measurement of length of vibrating architectural model

Measurement of the vibration displacement of an architectural model is performed by the laser displacement sensor CDX Series. Because of its high‑speed measurement capability of 80,000 times per second, accurate measurement of subtle displacement differences of the object under high‑speed vibration testing is possible. It also has a built‑in storage feature that enables storing measurement data up to 100,000 points, so monitoring the data and downloading the data as a CSV file is easily possible

• Ultra High-Accuracy Laser Displacement Sensors

  CDX Series

  World’s No. 1 Linearity Developed image sensor: ATMOS Direct Ethernet connection Equipped with a Web Server
