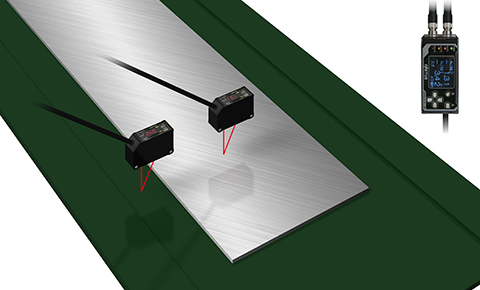

Measuring thickness of thin metal plate
Measuring the thickness of thin metal plates with the CD22. The thickness can be determined by measuring the height of the conveyor and the height of the metal plate, then calculating the difference between them. Using the CDA displacement sensor amplifier unit helps shorten installation and setup time.
Products Used
-
Compact Laser Displacement Sensors
CD22 Series
Smallest displacement sensor in class
