Measuring deviation of linear guide in X and Z axis

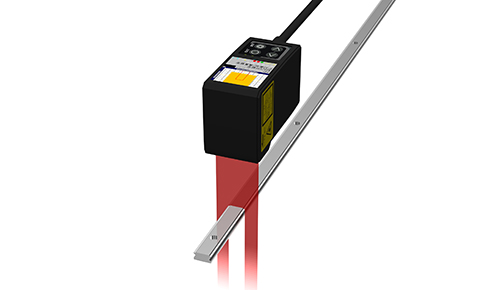

The LS‑100Cx shape‑measurement sensor inspects the straightness and bending of linear guides. Conventional displacement sensors require two units or two scans (by changing orientation) to measure both height and width. With the LS Series, height (Z‑axis) and edge position (X‑axis) can be measured simultaneously using a single sensor in one scan.

• 2-dimentional Laser Displacement Sensors

  LS Series

  Line beam for fast, accurate measuring of height and width
