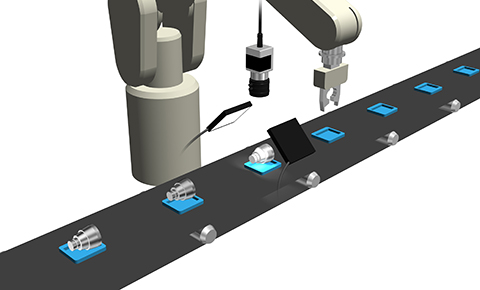

Verification of center coordinates for part picking

To enable a metal part to be picked by a robot, a camera captures the edges of the metal part to calculate its center coordinates. Two narrow directivity angle type OPF backlights are used to illuminate both ends of the metal part from diagonally above. The narrow directivity angle light suppresses the diffraction of light, allowing the edges to be captured more sharply.

• Sensing LED Backlight

  OPF Series

  Increased brightness compared with conventional models (narrow directivity angle type: 4×, diffuse type: 2.5×)
