Displacement sensors can be used to measure the height of a workpiece to control the level of a deburring brush.
The CD2H-700 can perform measurement at ranges up to 1200 mm, so the sensors can be placed so that they do not interfere with the movable range of the brush, which allows for stable measurement.

The CD22 series laser displacement sensor can be used to measure wear on the rail of a hanger conveyor.
Regular measurement using a maintenance trolley with two laser displacement sensors installed on it makes it possible to determine when maintenance is needed.
With the smallest size (W17.8 × D32 × H44.4 mm) in its class, the CD22 series can be installed inside the rails, allowing for constant measurement to help improve maintainability.

The CD2H series laser displacement sensor can be used to measure the thickness of surface-polished fine ceramic plates.
The thickness is measured in five locations simultaneously, at the four corners and the center of the ceramic plate. Using the 30 mm short range type for the four corners and the 130 mm middle range type for the center allows for the thickness to be measured in five locations at the same time.
With the highest repeatability of 0.25 µm in its class, the CD2H ensures highly accurate measurement. This series is also compatible with IO-Link, so measured values can be immediately logged using dedicated free software.

The width of a secondary battery film can be measured using two CD2H series laser displacement sensors.
The width is measured by placing sensors at both ends of the roll and calculating the measurement values of both sensors.
Since the CD2H-700 can perform long-distance measurement at ranges up to 1,200 mm, the sensors can be placed in positions where they will not interfere with the moving parts of equipment. In addition, the sensors can be used for workpieces with a variety of widths without changing the setup as the measurement range is 1,000 mm.

The thickness of the carbon plate and metal plate after bonding is measured with the laser displacement sensor CDX series.
All models of the CDX series are equipped with the newly developed image sensor "ATMOS", so black objects can be measured regardless of laser class 1.
Laser class 1 has realized measurement of black objects that was difficult to measure unless it was laser class 3R or higher.

CD33-250 can measure distance in 100~400mm range even if the material changes.

Measuring thickness of thin metal plate by CD22.
You can measure the thickness of the thin metal plate measuring height of conveyer and the metal plate and calculate difference between them. Utilizing displacement sensor controller CDA, it will help installation and setup in short time.

CD4 can measure thickness of rubber calculating with two measurement values from two sensor heads.

CD5 can calculate distance difference between calendar roller and rubber surface easily without any contact.

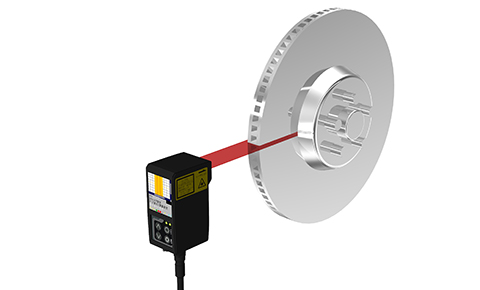

Measuring thickness of brake disk by LS series.
You don't have to install 2 displacement sensor. One LS-100CN can measure the thickness of the brake disk. It has 27mm Max. area to measure the thickness so installation will be easy.

Checking if the plate is fed double or not by LS series.
2 displacement sensor was needed to measure the thickness of the plate though, LS can measure the thickness of the plate and check if it's fed double or not from side of the plate.
You don't have to worry about collision of the sensor and picking arms.

Detecting double fed PWB by LS series.
Two displacement sensors could be utilized for this application though, mounting the sensors at the position precisely will be very difficult and also the sensors might collide with picking hand.
LS series can be installed at the side of the picking stage and measurement range in width axis is 27mm maximum so it will be easy and measurement is done by one sensor.

Measurement of thickness of spattering target by CD5 series.
It can measure the thickness precisely utilizing its "Tri-CORE" technology. CD5-30's repeat accuracy if 0.1um with its specular mode. It will be able to prevent deviation of evenness of the surface of spattering target and improve accuracy of the thickness while making layers on the target.

It can measure transparent PV (Photo Voltaic) substrate precisely.
Using calculation function with multiple sensor heads, you can easily find out the flatness or thickness.

You can measure the thickness of glossy electrode substrate precisely by specular mode of CD5-W85.

At the ink jet coating process, CD5-30 can measure the thickness of the coating applied on the glass substrate.
CD5-30's repeat accuracy is 0.2μm which can be utilized for measurement of liquid crystal orientation membrane and also for solar cell industry.
