The CD2H series laser displacement sensor can be used to measure the thickness of surface-polished fine ceramic plates.
The thickness is measured in five locations simultaneously, at the four corners and the center of the ceramic plate. Using the 30 mm short range type for the four corners and the 130 mm middle range type for the center allows for the thickness to be measured in five locations at the same time.
With the highest repeatability of 0.25 µm in its class, the CD2H ensures highly accurate measurement. This series is also compatible with IO-Link, so measured values can be immediately logged using dedicated free software.

Measurement height of the robot by CD22.
It measures height of the robot and feedback to the system to position the robot hand at correct position.
It can measure various material and very compact and light weight so you can install the sensor on the robot hand that moves often without problems.

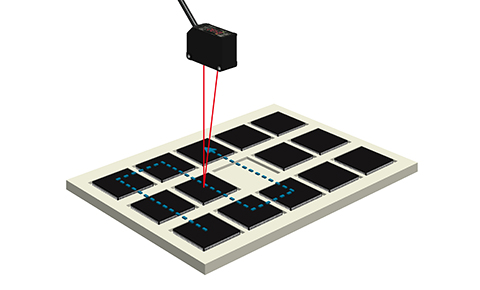

Checking existence of IC chips on the tray by CD22.
General purpose laser sensor won't be able to detect IC chips on the tray because of small difference of reflection from them though, CD22 will be able to detect IC chips correctly by measuring distance to IC chips and tray.

CD5 can count small parts by detecting very small height difference. Its high pass filter helps its measurement to be done stably even if the parts are on the conveyer.

CD5-85 can measure coplanarity of IC/LSI precisely by its repeat accuracy 1um.

Measuring height of device mounted on the PWB by CD33.
It's compact and light weight so you can install the sensor at the robot that moves often without problems. It's also cost effective so you can save cost of investment.

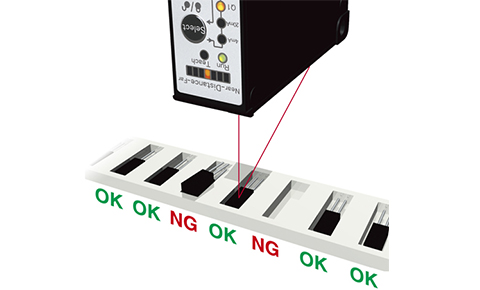

Checking if the electronic components are sitting on the tray correctly or not by CD33.
It can detect overlapping and missing by measuring height of the components. CD33-30N* can detect up to 12um level difference. It has not only analog output but also control output so you can choose equipment to be connected to CD33.

Measuring sagging of sheet material to control its tension.
CD5-85 will be able to measure the sagging with repeat accuracy of 1um which will make it possible to control keep tension of the sheet accurately and stably.

Checking if the robot arm is holding the object correctly or not by CD33.
By using two CD33, you can measure the size of the robot arm and can check if the robot arm is holding object or not. You can also connect the sensor to Mitsubishi MELSEC-Q series through control unit UQ1-02 without any ladder programs in short time.
