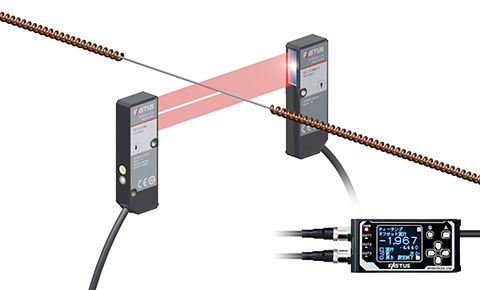

The TD1 through-beam edge sensor detects the seams of coils wound around metal tubes.
Detection is possible by monitoring the difference between the small diameter of the tube and the large diameter of the coils. With a repeatability of ±5 μm, the TD1 can ensure stable detection even if the coil results in only a slight difference in diameter size. In addition, the 10 mm measurement range means workpieces never leave the field of view, making detection possible even if some deviation occurs during tube transportation.

The TD1 series of through-beam edge sensors measures the outer diameter of cylindrical workpieces.
Although the maximum measurement range of the TD1 series is 10 mm, using two TD1 series sets and an amplifier unit for calculations makes it possible to measure workpieces even with an outer diameter of 10 mm or more. This means outer diameter measurement is possible at a low cost and without using expensive size-measuring instruments.

It measures size of the box for sorting. CD5-W2000 can measure in +/- 500mm range from 2m distance in 40um accuracy.

CD5-W2000 can measure from 1500mm up to 2500mm in 30um resolution. It can measure diameter of very thin foil coil precisely.

Measuring wire diameter and its position by LS series.
To control wire diameter on line, LS series can provide the measurement value continuously and also it can provide the position of the wire to control tension and position in X axis.

Measuring thickness and width of the cupper belt by CD5 series and LS series.
2 CD5 sensor heads can measure the thickness calculating with measurement result from them in 0.02μm resolution and LS series can measure the width of the cupper belt in 25μm resolution.

Measurement of groove width on the plastic parts by LS series.
It helps automatic measurement of groove on the plastic parts because it has 27mm range that it can measure edge position accurately.

Checking type of the parts for automotive by measuring size by CD5 series.
By utilizing displacement control unit UQ1 series, you can connect multiple sensor heads to Mitsubishi MELSEC-Q series without any ladder programs in short time. You can also get measurement result and calculation result at one time.

Measuring inner diameter of the pipe by CD22 series.
Because of small size of the CD22 series, width is only 31mm, you can measure inner diameter of the pipe installing 3 CD22 inside of the pipe.
You can also get accurate diameter by calculating with 3 measurement results even if the pipe position is deviated.

CD5 can measure the size of silicon ingot stably by its "Tri-CORE" function even if the reflection is not stable.

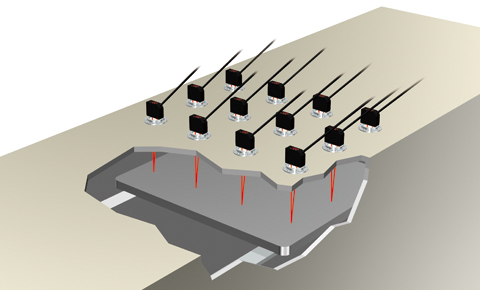

Warpage of the tray in heat chamber can be measured by CD33-250 through view port in repeat accuracy of 75μm up to 400mm distance maximum.
