The color-area mode of the MVS-PM-R pattern matching vision sensor makes it possible to detect differences in package color, preventing different varieties of packaged beverage products from being conveyed.
In addition, the BGS-HDL C-MOS laser sensor with two control outputs can be selected for the vision sensor’s trigger sensor.
The output 1 can be set for a trigger signal to the vision sensor for inspection of mixed product varieties, when a juice box passes at the correct height, leaving output 2 available to detect incorrect orientation when a juice box has fallen over on its side. In this way, both camera triggering and sideways package detection can be performed using a single sensor.

The CVSE1-RA easy color area sensor monitors for caps with the wrong color.
With color discrimination possible for 15,000 colors and a high resolution, the CVSE1-RA is able to distinguish between even slightly varied cap colors.
Moreover, the ability to register up to 16 different variations makes it possible to switch instantly to the desired inspection type even with changeovers in product variety.

Detecting wrong metal shaft in the production line by MVS-EM-R.
It can measure the length of end part of the metal shaft and detect if it's correct one or not.

Checking marking (L: Left / R: Right) on the plastic parts by MVS-PM-R.
Even if the parts rotated, MVS-PM can detect the marking utilizing "rotate search" function.

Detecting wrong parts at assembling line by CVS2 series.
By checking color and shape of metal or plastic parts, it can detect if the parts are correct or not. It has masking function which will help inspection efficiency as well.

Checking if the parts are correct or not by inspecting characters by MVS-OCR2.
It has a function that output character code of first character. This can be utilized for sorting by type of the parts at next stage of the line.

Checking if the springs are correct or not by MVS-PM-R.
When the number of turning of the spring is different, color area detected by MVS-PM-R will be different in the inspection window. Then, it can reject wrong spring by the result.

Detecting wrong type axel pedal fed mixed in the process by checking the marking on the pedal by CVS4 series.
When it is difficult detecting wrong type pedal by checking shape, you can utilize character recognition on the marking on the pedal.

Checking marking on the meter panel parts by MVS-PM-R.
Choose LED lighting and align correctly so that the marking shows clearly. Normally, coaxial lighting will work fine in this case.

Detecting wrong type metal plate fed mixed in the process by checking the contour of the plate by CVS3 series.
By checking contour of the whole part of the plate, it can detect not only the shape of the plate but also holes on the plate.

Detecting wrong type parts fed mixed in the process by checking whole part of the parts by MVS-PM-R series.
By "full color" function, checking color of whole part of the parts, it can detect type of the parts for example, for left steering type or for right steering type.

Checking if the capacitor is correct or not by MVS-PM-R.
It can detect type/model of the capacitor by detecting its mark or shape.

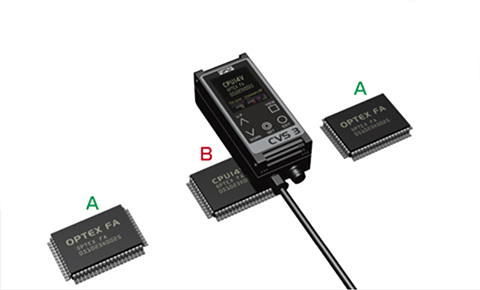

Checking getting mixed with wrong parts by CVS3-RA.
By checking printed character shape on the parts, it can detect wrong parts mixed even if the size is same.

Checking part type by its shape by MVS-PM-R.
"contour" function will be utilized for checking shape of the part and it can check small difference of the parts. "full color" function will be utilized for checking low contrast part so it can detect up side down.

Color pattern matching camera MVS-PM-R can have up to 16 inspection window so each individual packaging can be checked if it's correct one or not.
