Vision Sensors

Measurement

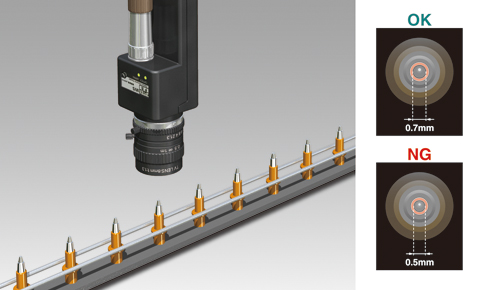

Measurement of diameter of tip of ball point pen

Measurement of diameter of tip of ball point pen

Measurement of diameter of tip of ball point pen by MVS-EM-R.
By utilizing ring lighting and let the tip of the ball point pen lit clearly adjusting distance between the lighting and the tip, it can measure the diameter of the tip of the ball point pen. It will help automation of appearance inspection.

Model: Measurement vision sensor  MVS-EM-R Series




Checking appearance of printed material with holes

Checking appearance of printed material with holes

Checking appearance of printed material with holes by MVS-EM-R.
It can measure the distance between edges precisely so you can measure edge to edge distance on printed material with holes. Wrong one can be rejected before nest stage.

Model: Measurement vision sensor  MVS-EM-R Series




Measurement of hole diameter on rubber parts

Measurement of hole diameter on rubber parts

Measurement of hole diameter on rubber parts by MVS-EM-R.
It can measure the diameter of the hole by "inner diameter" function accurately. You can choose maximum, minimum or average of the diameter in the inspection window.

Model: Measurement camera  MVS-EM-R Series




Measurement of fan belt width

Measurement of fan belt width

Measurement of fan belt width by MVS-EM-R.
By "outer dimension" function, it can measure the width of the fan belt accurately. You can measure maximum part, minimum part and average in the inspection window.

Model: Measurement camera  MVS-EM-R Series
