Checking side of the parts on the feeder by MVS-PM-R.
It can detect side of the parts by checking shape or color of the parts.

Checking if the capacitor is correct or not by MVS-PM-R.
It can detect type/model of the capacitor by detecting its mark or shape.

Checking existence of bad mark on the electronic parts by CVS2-RA.
It can detect 2 colors at one time for example one color of the parts body and another of the lead of the parts.

Checking direction and side of the parts in carrier tape by CVS3.
It can compare the parts image with master image and detect wrong direction or wrong side of the parts.

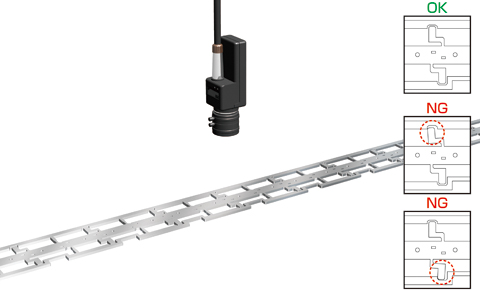

Detecting deformation of the frame by MVS-EM-R.
When the frame deforms, the distance from edge to edge on the frame will be changed. MVS-EM-R can have up to 16 inspection window so you can measure 16 part of the frame at one time.

Checking existence of parts on the tray by MVS-PM-R.
It can have up to 16 inspection windows so you can check existence of each part on the tray individually. You can get output for each inspection window as well so you know which part is missing on the tray.

Checking getting mixed with wrong parts by CVS3-RA.
By checking printed character shape on the parts, it can detect wrong parts mixed even if the size is same.

Checking existence of label on the plastic cover for home electric appliances by MVS-PM-R.
By checking color area of the label, it can detect existence of it. One controller can control up to 3 cameras so multiple inspection can be done by one controller.

Checking appearance of molded device package on the frame by MVS-PM-R.
It can check contour of the object by "contour" function accurately and also it has masking function that neglect other part that doesn't need any inspection.

Checking appearance of screw parts by MVS-PM-R.
By detecting wrong parts, it can prevent wrong part fed into production line.
It can detect contour of the object by "contour" function accurately so any different part with wrong part with different number of fins can be rejected. Masking function also will be utilized for efficient inspection.

Checking direction of LED light by MVS-PM-R.
"color and shape" function of MVS-PM-R can detect shape of internal terminal in the LED light.

Checking if the button battery is sitting correctly in the remote controller or not by MVS-PM-R.
Detecting shape of the button battery and check if it's circle or not and also its position by pattern matching.

Counting number of LED light lit in bar LED lighting by MVS-EM.
By its "edge count" function, it can count number of LED light.
