Circuit Diagram

I/O circuit diagram

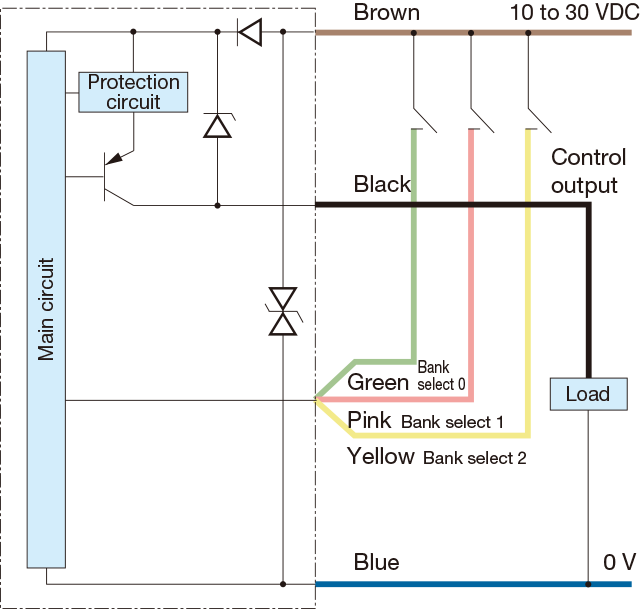

• NPN output type

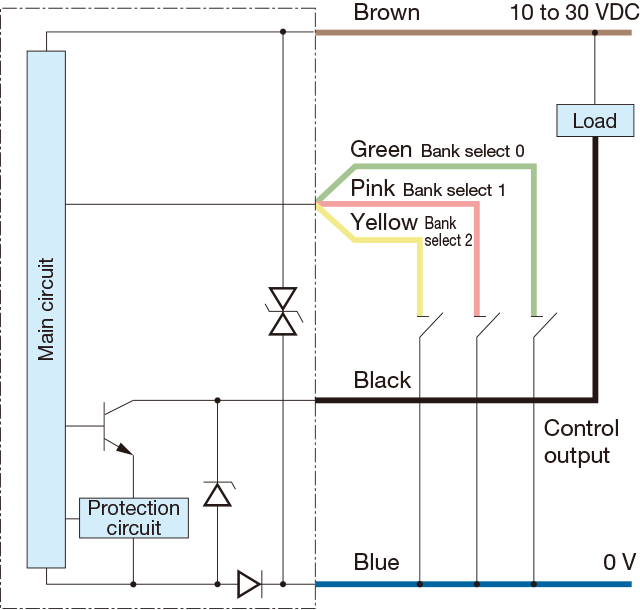

• PNP output type



• Bank number and input signal (NPN)



• Connecting

  • When the bank switching line is not needed, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.

  Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state while the power is on (approx. 100 ms).

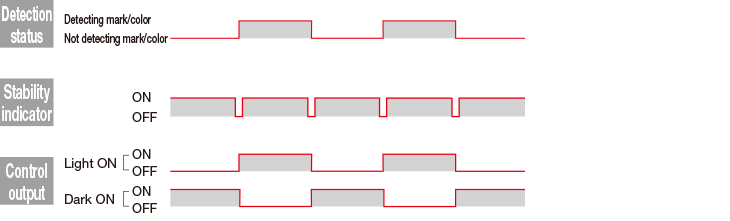

Operation mode

*The operation mode is the same for NPN output and PNP output.
