Circuit Diagram
I/O circuit diagram
-

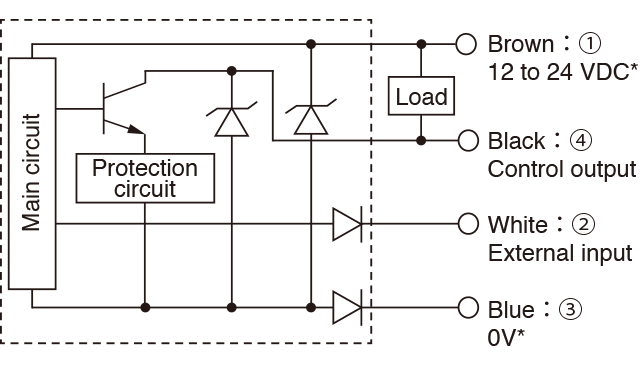

NPN output
-

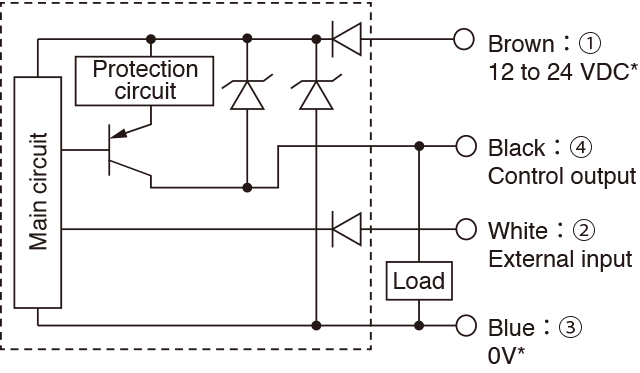

PNP output
・Power is supplied to slave units from the master unit, so the power supply terminals
(brown: 12 to 24 VDC and blue: 0V) are not connected.
-

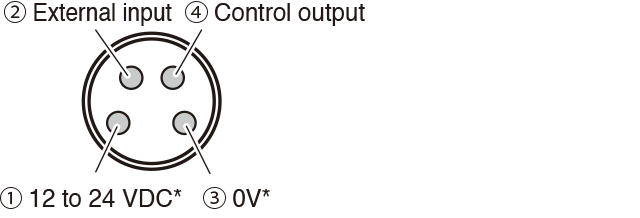

M8 connector pin layout
▪ As the power is supplied to slave units from the master unit, no connection with 12 to 24VDC and 0V pins are required.
