- Some models in this product series have been discontinued.
Specifications
Specifications
Sensor head
| Type | Coaxial retro-reflective type | Long range coaxial retro-reflective type |
Coaxial diffuse reflective type |
|
|---|---|---|---|---|
| Model | Cable type | DSR-800 | DSR-5000 | DSD-100 |
| Connector type | - | - | - | |
| Sensing distance | Long mode | 0 to 8 m*1 (With sensitivity correction settings ON: 0.2 to 20 m) |
0.5 to 50 m*2 (With sensitivity correction settings ON: 1 to 70 m) |
1 m (With sensitivity correction settings ON: 1.5 m)*3 |
| Standard mode | 0 to 5 m*1 | 0.3 to 35 m*2 | 0.7 m*3 | |
| Fast mode | 0 to 2 m*1 | 0.1 to 20 m*2 | 0.25 m*3 | |
| Spot size | Approx. ø2 mm / at a distance of 2 m | Approx. ø2 mm / at a distance of 2 m | Approx. ø1 mm / at a distance of 1 m | |
| Light source | Red semiconductor laser (655 nm 3 mW max Class 2 <IEC/JIS>*4) | |||
| Indicators | Laser emission indicator (green LED) Output indicator (orange LED) | |||
| Connection with amplifier | Cable with system specific plug (e-CON) | |||
| Applicable regulations | EMC directive (2004/108/EC) / FDA regulations (21 CFR 1040.10) | |||
| Applicable standards | EN 60947-5-7 | |||
| Company standards | Noise resistance: Feilen Level 3 cleared | |||
| Environmental resistance | Ambient temperature/humidity | -10 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | ||
| Ambient illuminance | Sunlight: 10,000 lx Incandescent lamp: 3000 lx | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
|||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
|||
| Degree of protection/materials | IEC regulation IP67 Housing, cover: PC Window: PMMA (glass fiber filled) |
|||
| Weight (including cable) | 45 g | |||
| Included accessories | Reflector: MP-45 | Reflector: MP-45 and P250F | - | |
*1. Sensing distance when using the lens attachment BL-W130L-1 is as follows.
Line beam, Long mode: 2 m / Standard mode: 1.5 m / Fast mode: 1 m
Area beam, Long mode: 1.5 m / Standard mode: 1 m / Fast mode: 0.6 m
*2. DSR-5000 includes two reflectors; P250F and MP-45.
Sensing distances in the table are when using P250F. The sensing distances when using MP-45 are as follows.
Long mode: 0.5 m to 20 m / Standard mode: 0.3 m to 10 m / Fast mode: 0.1 to 5 m
*3. Using a 200 × 200 mm white sheet of paper.
*4. Classified as Class II in the US FDA standards.
Note) The measurement condition is at an ambient temperature of +24℃ (normal temperature) unless otherwise designated.
Sensor head
| Type | Through-beam type | Through-beam/length measurement type | |
|---|---|---|---|
| Model | Cable type | DSTC-200 | DSTA-200 |
| Connector type | DSTC-200-M8 | DSTA-200-M8 | |
| Sensing distance | Long mode | 2 m | 2 m 0.5 m: Length measurement mode*1 |
| Standard mode | |||
| Fast mode | |||
| Spot size | Approx. ø2 mm / at a distance of 2 m |
Approx. 30 × 2.5 mm / at a distance of 2 m |
|
| Light source | Red semiconductor laser (655 nm 390 μW max Class 1 <IEC/JIS>*2) |
||
| Indicators | Laser emission indicator (green LED) Output indicator (orange LED) |
||
| Connection with amplifier | Cable type: Cable with system specific plug (e-CON) / Connector type: Dedicated M8 connector cable with system specific plug (e-CON) |
||
| Applicable regulations | EMC directive (2004/108/EC) / FDA regulations (21 CFR 1040.10) |
||
| Applicable standards | EN 60947-5-7 | ||
| Company standards | Noise resistance: Feilen Level 3 cleared | ||
| Environmental resistance | Ambient temperature/humidity | -10 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | |
| Ambient illuminance | Sunlight: 10,000 lx Incandescent lamp: 3000 lx | ||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
||
| Degree of protection/materials | IEC regulation IP67 Housing, cover: PC Window: PMMA (glass fiber filled) |
||
| Weight (including cable) | 90 g | 115 g | |
| Included accessories | Dedicated M8 connector cable with system specific plug (e-CON) (connector type only) |
||
*1. For the response time when in length measurement mode, set Long mode or Standard mode. In addition, use an advanced function type for the amplifier unit.
*2. Classified as Class II in the US FDA standards.
Note) The measurement condition is at an ambient temperature of +24℃ (normal temperature) unless otherwise designated.
Advanced function type amplifier
| Type | Stand-alone type | Inter-connection master | Inter-connection slave | ||
|---|---|---|---|---|---|
| Model | NPN | Cable type |
D2SA-MNS | D2SA-MN | D2SA-SN |
| PNP | D2SA-MPS | D2SA-MP | D2SA-SP | ||
| Response time | 60 μs (Fast mode)*1 / 500 μs (Standard mode) / 2 ms (Long mode) |
||||
| Distance adjustment | Teaching / manual adjustment | ||||
| Indicators | Laser emission indicator (green LED) Output CH1 and CH2 indicator (orange LED) Teaching indicator (red LED) Channel CH1 and CH2 indicator (green LED) |
||||
| Digital display | 7-segment, 8-digit display | ||||
| I/O settings | Input settings (select from teaching*2, synchronization, laser off, or counter reset) Output settings (CH2 output can be set for use as control output or an alarm output) |
||||
| Control output | NPN/PNP Open collector MAX. 100 mA/30 VDC | ||||
| Analog output | 4 to 20 mA*3 (usable in Long mode or Standard mode) | ||||
| Timer function | OFF delay / ON delay / one-shot / no display 1 ms to 9 s (adjustment is possible in 1 ms increments) | ||||
| Output mode | Light ON / Dark ON function switching | ||||
| Connection type | Cable type: Cable length: 2 m (ø3.8 mm) | ||||
| Insulation resistance | 20 MΩ or more (with 500 VDC) | ||||
| Rating | Supply voltage | 12 to 24 VDC ±10%, including 10% ripple (p-p) | |||
| Current consumption | 45 mA or less (at 24 V) | ||||
| Applicable regulations | EMC directive (2004/108/EC) | ||||
| Applicable standards | EN 60947-5-7 | ||||
| Company standards | Noise resistance: Feilen Level 3 cleared | ||||
| Environmental resistance | Ambient temperature/humidity | -25 to +55℃*4 (no freezing) / 35 to 85% RH (no condensation) | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
||||
| Degree of protection/materials | IEC regulation IP50 Housing, cover: PC | ||||
| Weight | Cable type: Approx. 65 g (including cable) | ||||
| Included accessories | Mounting bracket | ||||
*1. For the response time when connected, set Long mode or Standard mode.
*2. External teaching is a teaching mode set in the amplifier main unit and executed in advance.
*3. Load impedance 300 Ω or less
*4. Total No. of connectable units when including the master unit: 1 to 3 units. -25 to +50℃ when linking a total of 4 to 8 units.
Standard type amplifier
| Type | Stand-alone type | Inter-connection master | Inter-connection slave | ||
|---|---|---|---|---|---|
| Model | NPN | Cable type | D2SA-MN3S | D2SA-MN3 | D2SA-SN1 |
| Connector type | D2SA-MNS-M8 | D2SA-MN-M8 | D2SA-SN-M8 | ||
| PNP | Cable type | D2SA-MP3S | D2SA-MP3 | D2SA-SP1 | |
| Connector type | D2SA-MPS-M8 | D2SA-MP-M8 | D2SA-SP-M8 | ||
| Response time | 60 μs (Fast mode)*1 / 500 μs (Standard mode) / 2 ms (Long mode) |
||||
| Distance adjustment | Teaching / manual adjustment | ||||
| Indicators | Laser emission indicator (green LED) Output indicator (orange LED) Teaching indicator (red LED) Channel indicator (green LED) |
||||
| Digital display | 7-segment, 8-digit display | ||||
| I/O settings | Select from teaching*2, synchronization, laser off, or counter reset (Can be set for connector types only) |
||||
| Control output | NPN/PNP Open collector MAX. 100 mA/30 VDC | ||||
| Analog output | - | ||||
| Timer function | OFF delay / ON delay / one-shot / no display 1 ms to 9 s (adjustment is possible in 1 ms increments) | ||||
| Output mode | Light ON / Dark ON function switching | ||||
| Connection type | Cable type: Cable length: 2 m (ø3.8 mm), Connector type: M8, 4-pin |
||||
| Insulation resistance | 20 MΩ or more (with 500 VDC) | ||||
| Rating | Supply voltage | 12 to 24 VDC ±10%, including 10% ripple (p-p) | |||
| Current consumption | 45 mA or less (at 24 V) | ||||
| Applicable regulations | EMC directive (2004/108/EC) | ||||
| Applicable standards | EN 60947-5-2 | ||||
| Company standards | Noise resistance: Feilen Level 3 cleared | ||||
| Environmental resistance | Ambient temperature/humidity | -25 to +55℃*3 (no freezing) / 35 to 85% RH (no condensation) | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | Approx. 50 G (500 m/s2); 3 times in each of the X, Y, and Z directions |
||||
| Degree of protection/materials | IEC regulation IP50 Housing, cover: PC | ||||
| Weight | Cable type: Approx. 65 g (including cable) | ||||
| Included accessories | Mounting bracket | ||||
*1. For the response time when connected, set Long mode or Standard mode.
*2. External teaching is a teaching mode set in the amplifier main unit and executed in advance.
*3. Total No. of connectable units when including the master unit: 1 to 3 units. -25 to +50℃ when linking a total of 4 to 8 units.
• For the connector type, please purchase an optional JCN series connector cable.

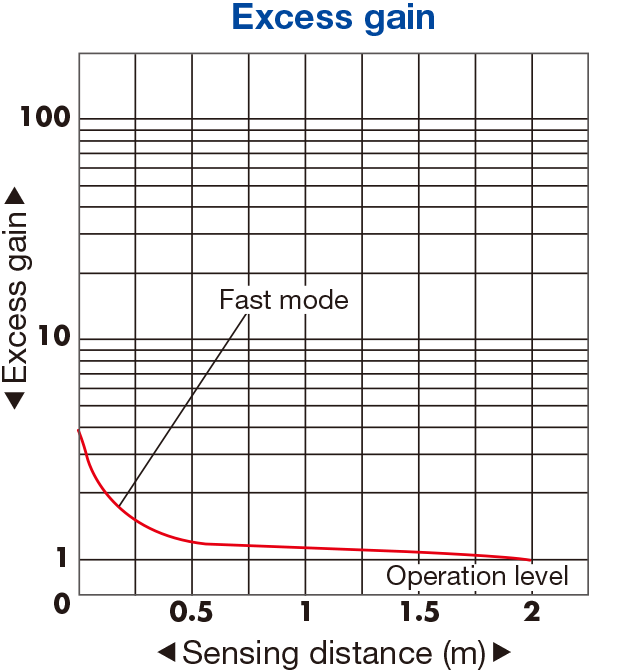

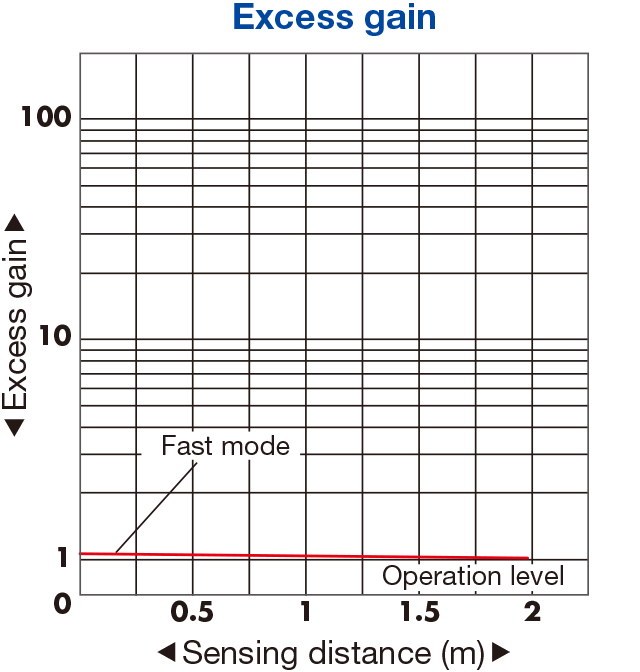

Typical characteristic data

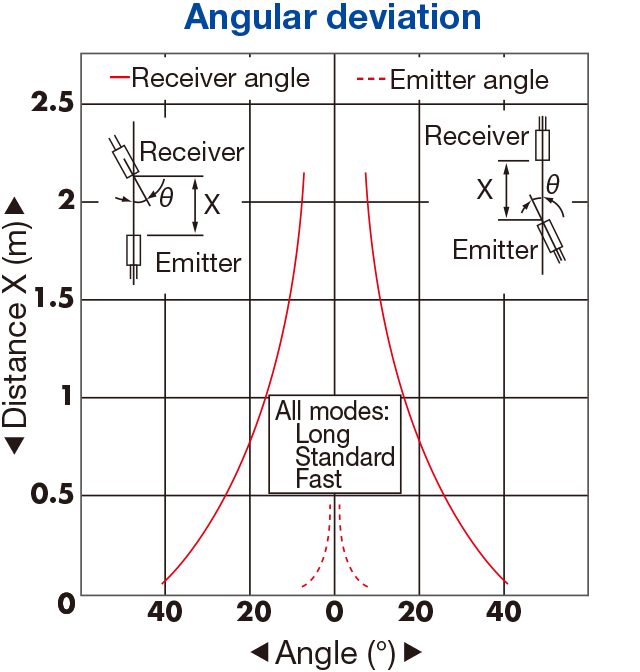

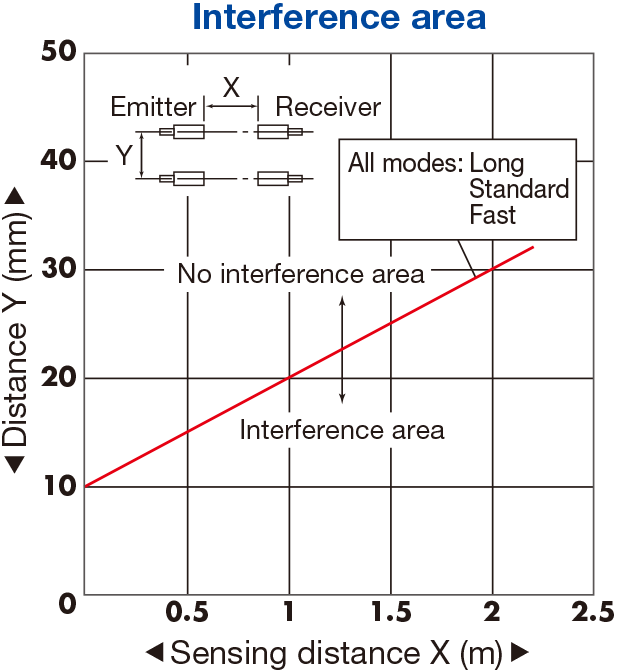

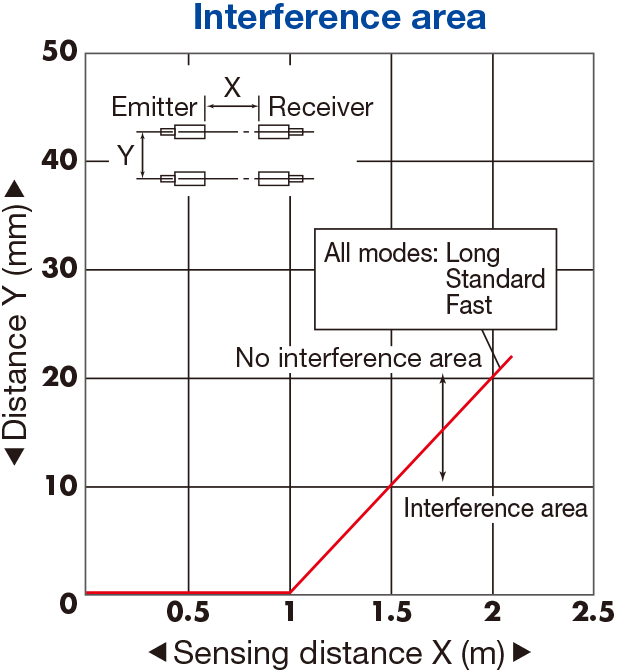

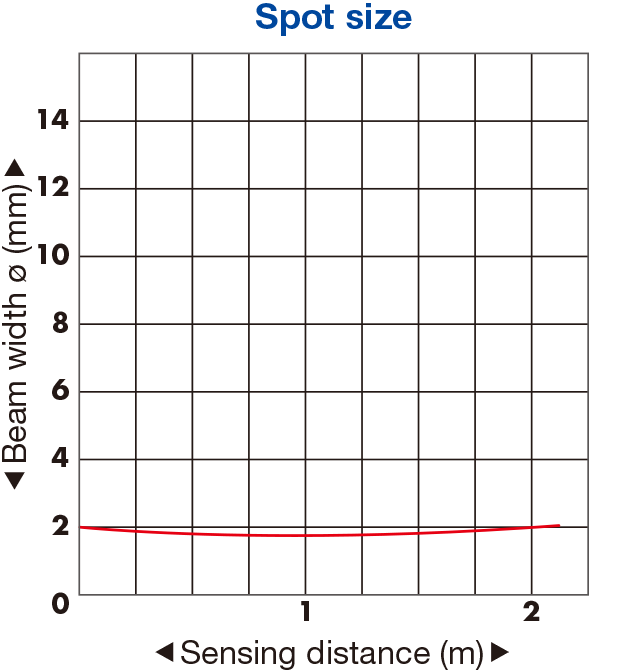

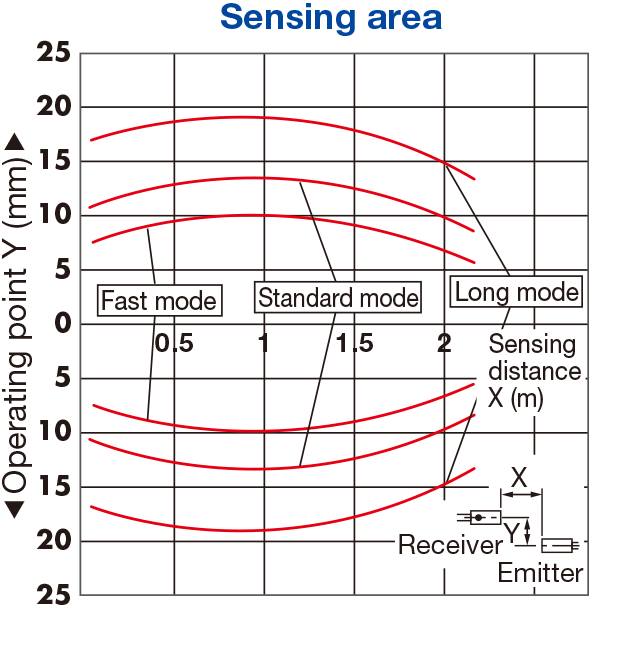

DSTC-200

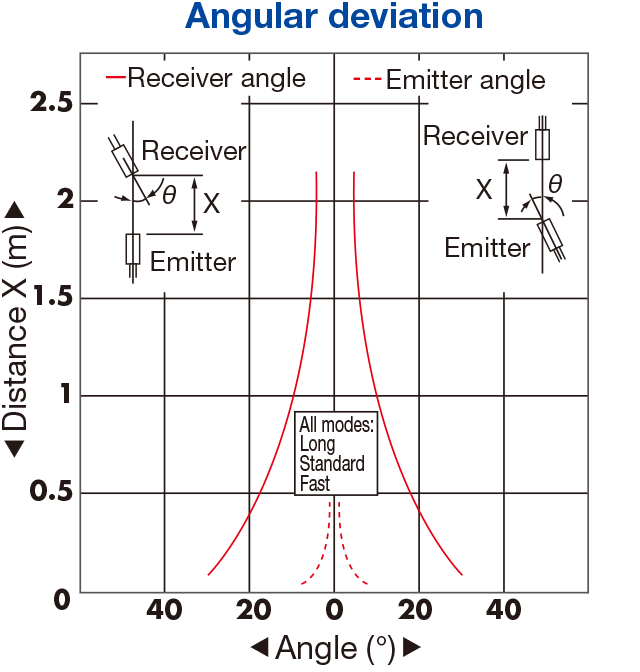

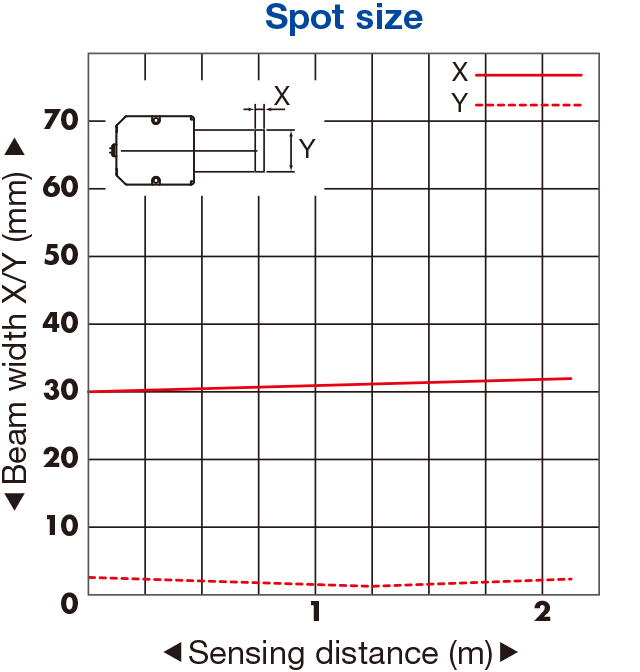

DSTA-200

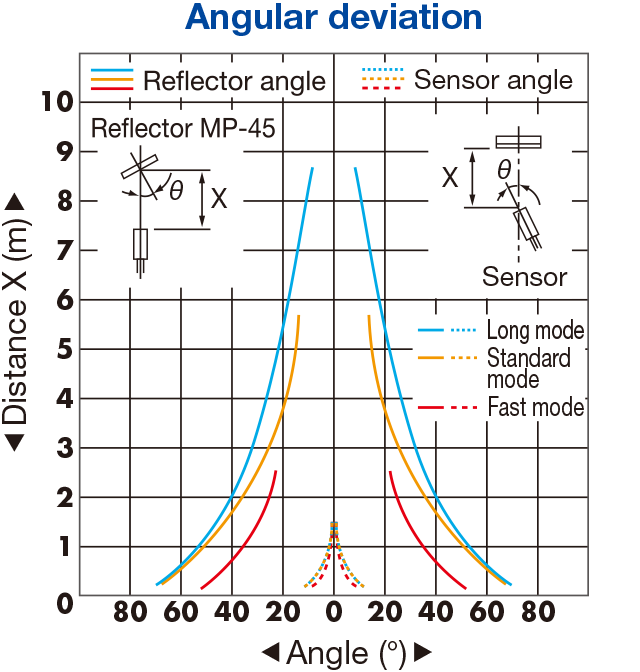

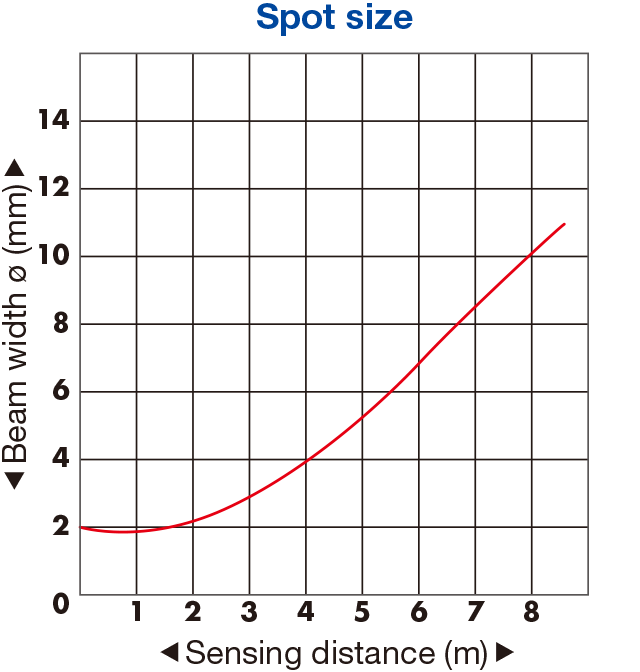

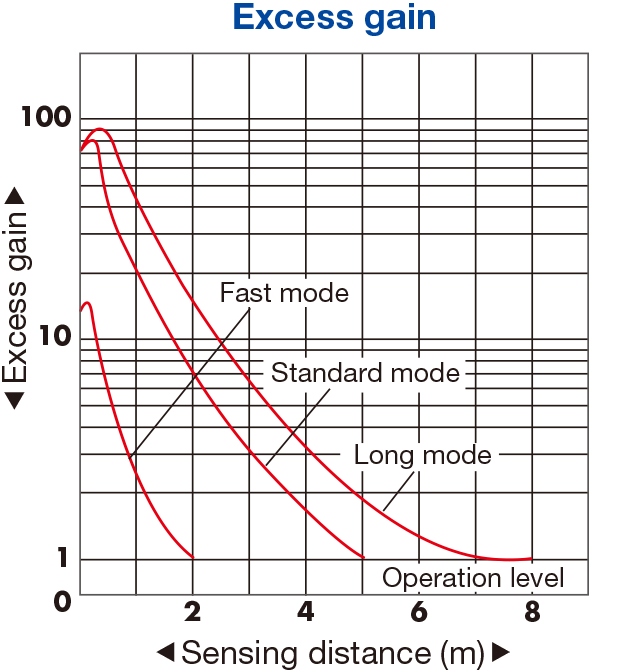

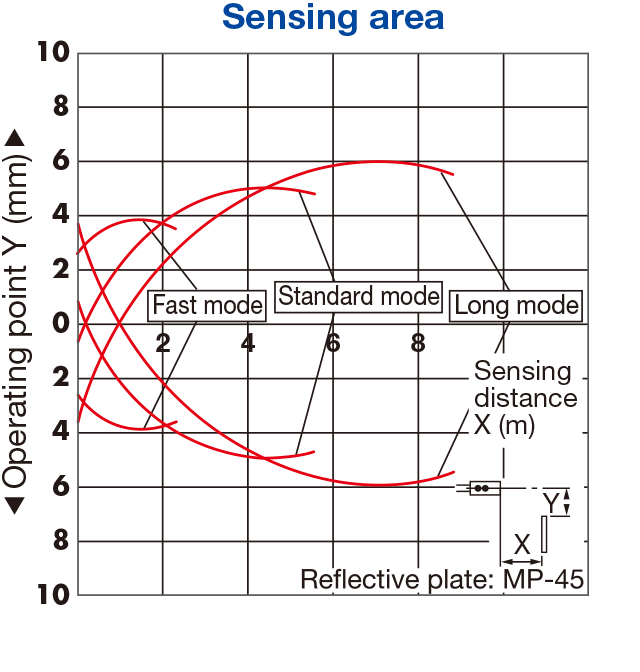

DSR-800
-
-
-
-
-

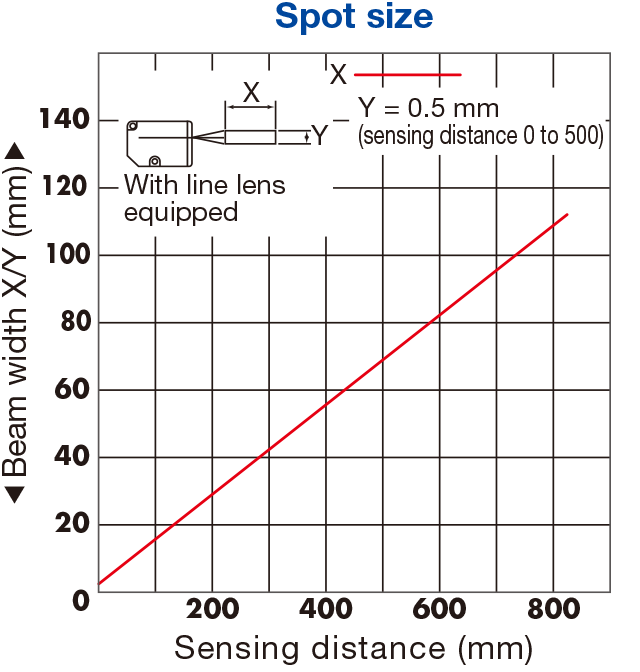

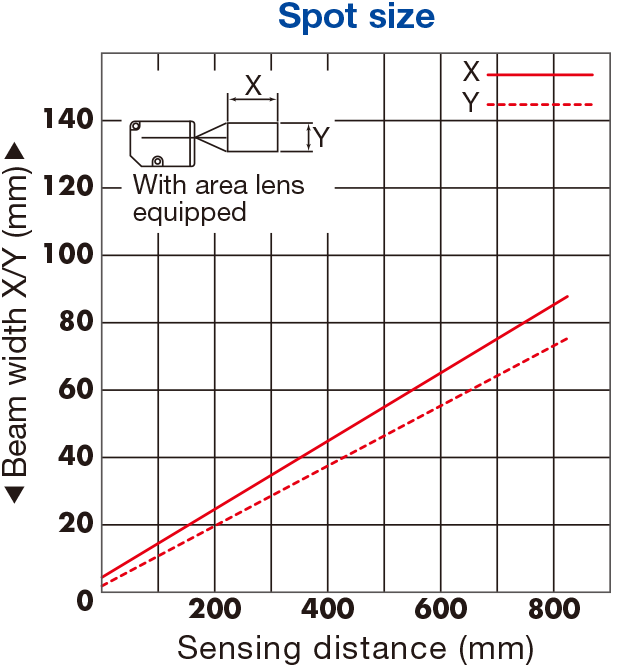

- Spot size when using lens attachment→
-
-

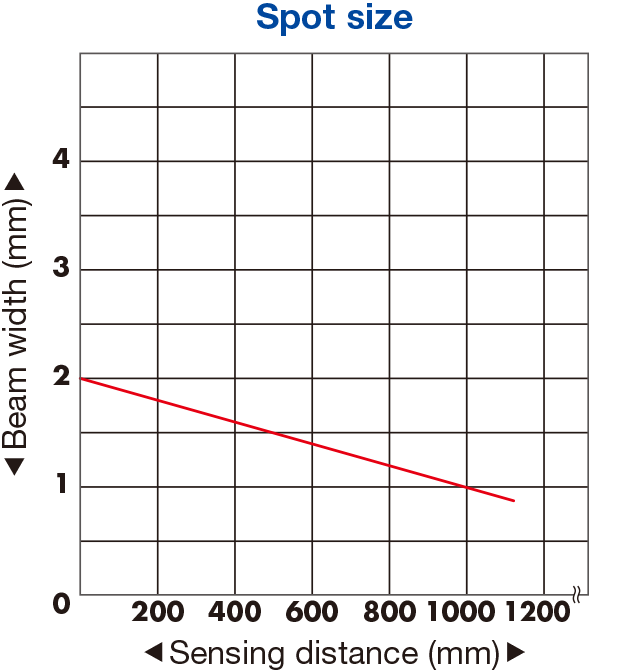

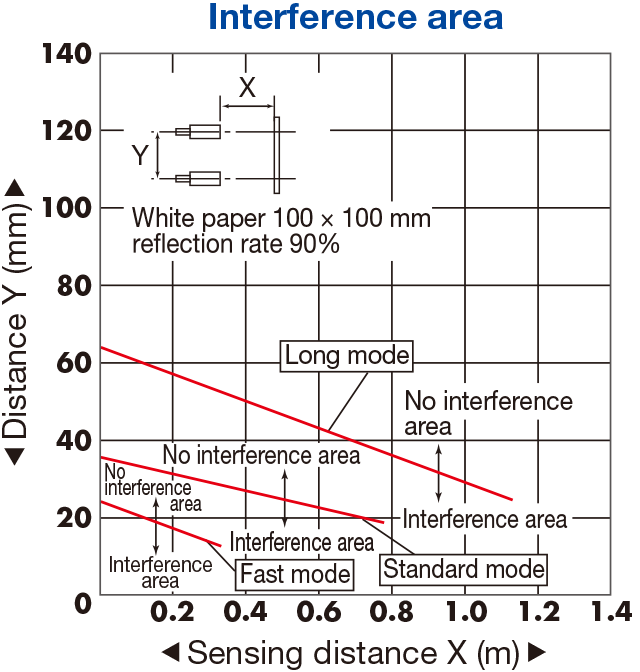

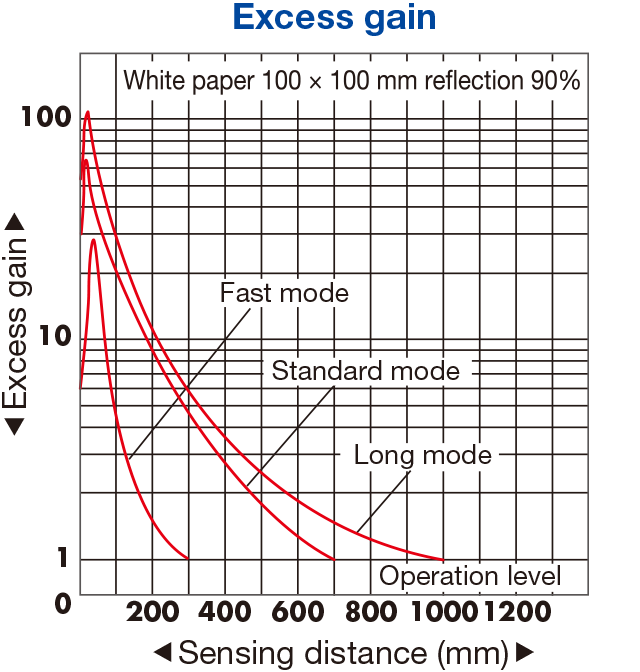

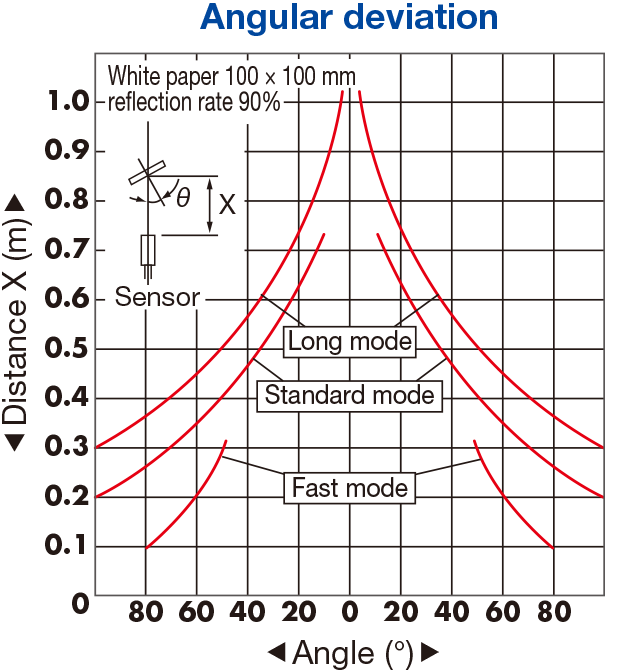

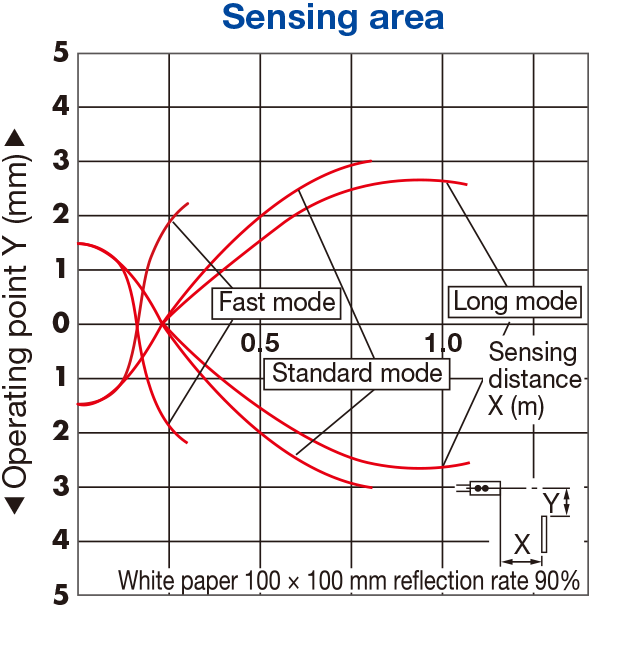

DSD-100

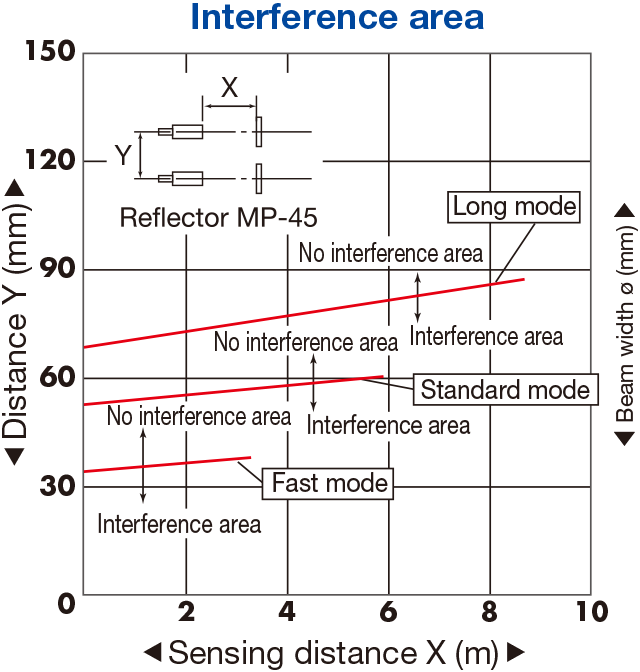

*Interference area data are of cases where 5 amplifiers or more are linked or not link-connected.

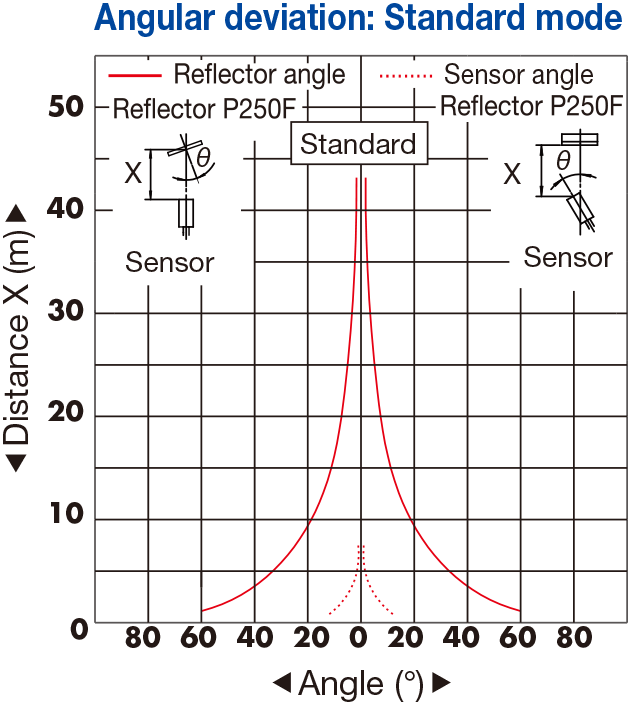

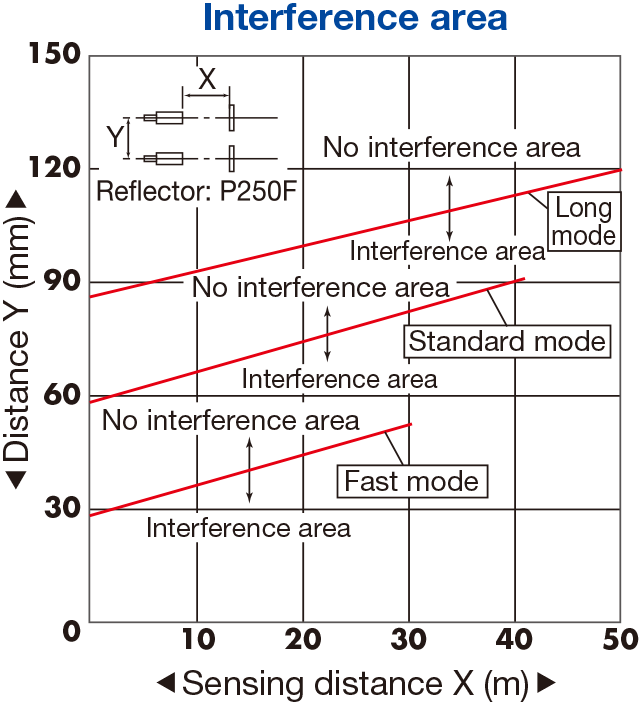

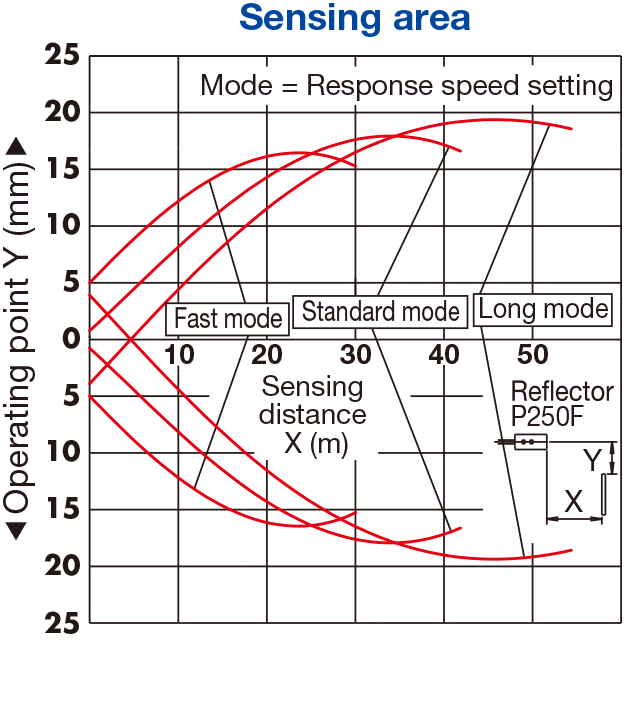

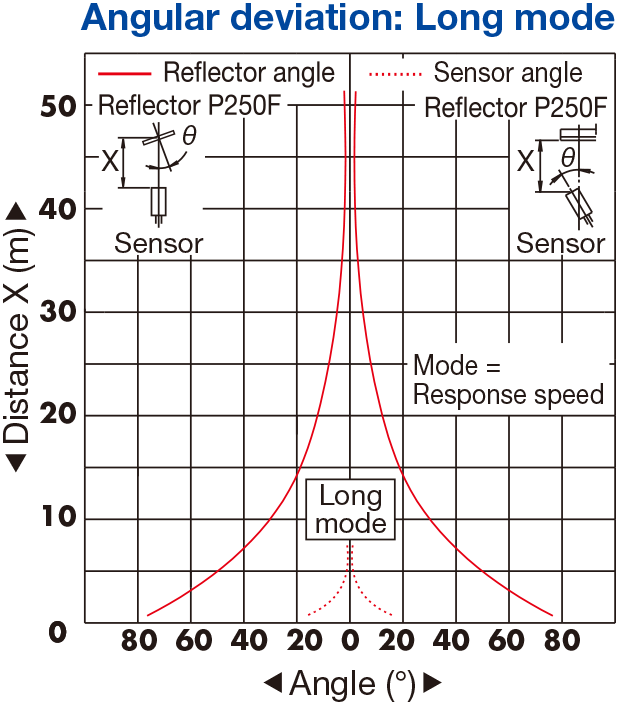

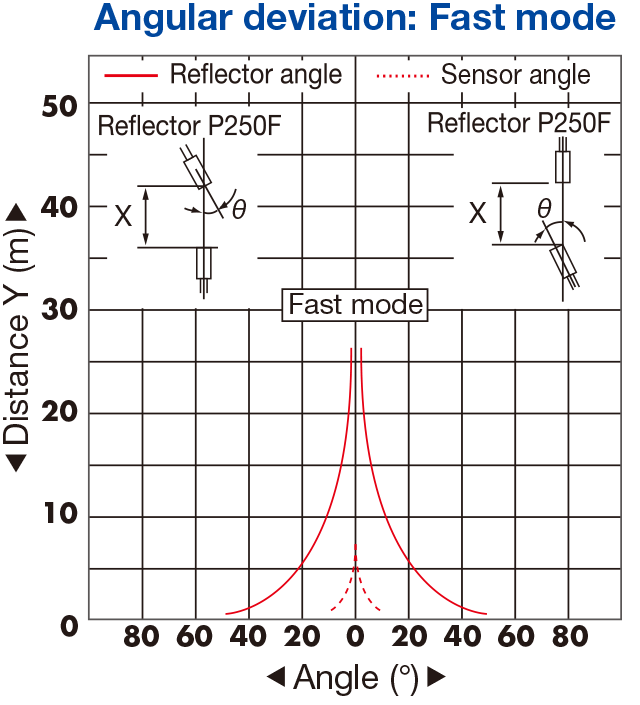

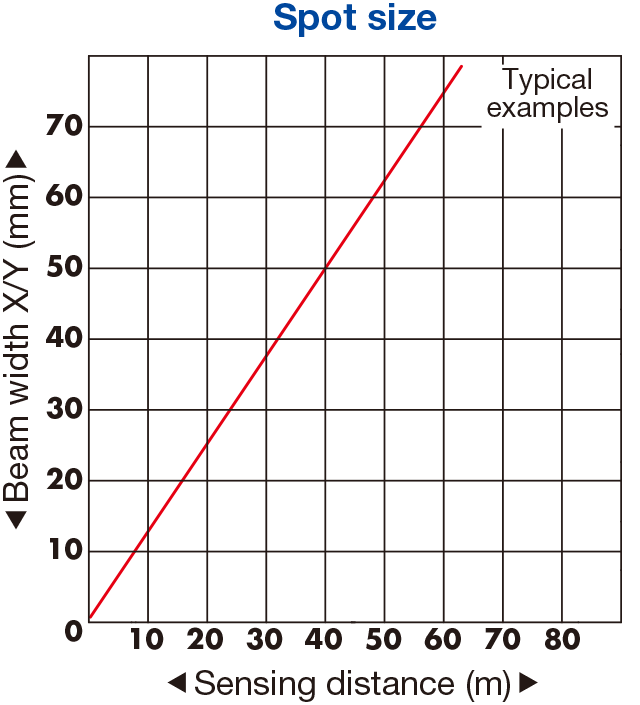

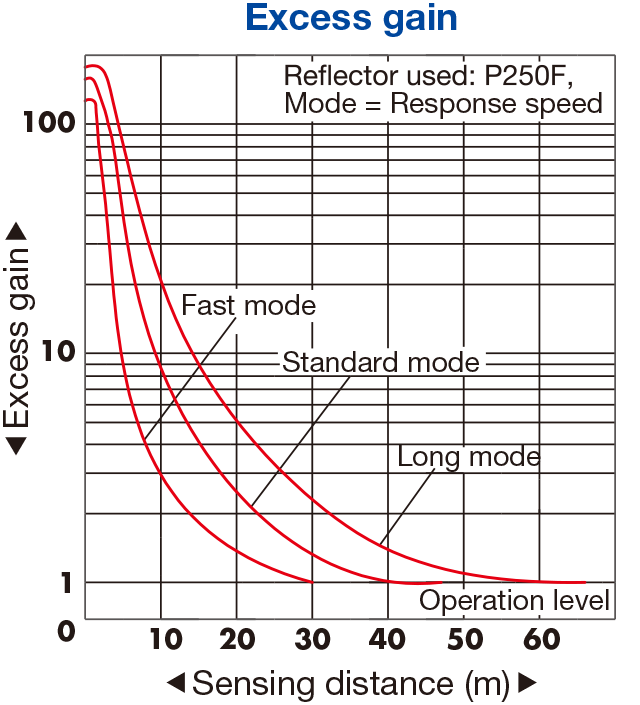

DSR-5000
