Dimensions

Sensor head

• DSTA-200



DSTA-200-M8

DSTC-200

DSTC-200 -M8

Sensor head

DSR-800/DSR-5000/DSD-100

Lens attachment diagram

DSR-800+BL-W130L-1

Amplifier unit

D2SA Stand-alone type

D2SA inter-connection type

Reflective sheet

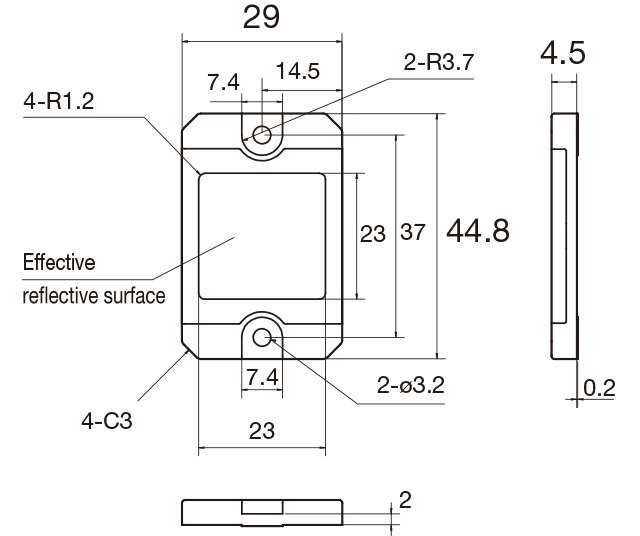

• MP-45 (included with DSR-800 and DSR-5000)

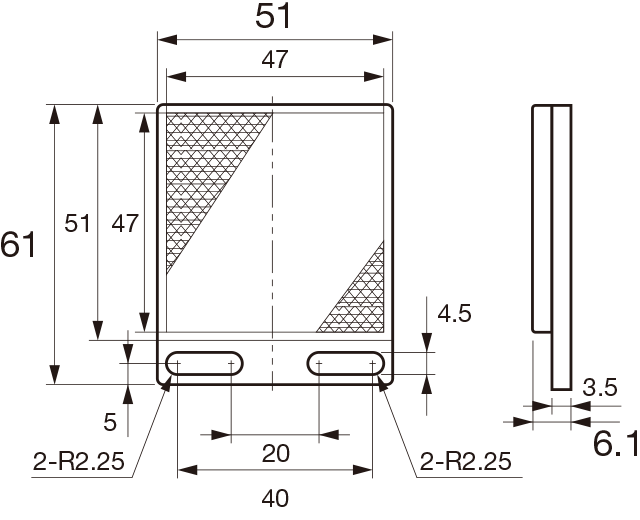

• P250F (included with DSR-5000)



• MP-225 (optional)



•

Connector cable (optional)

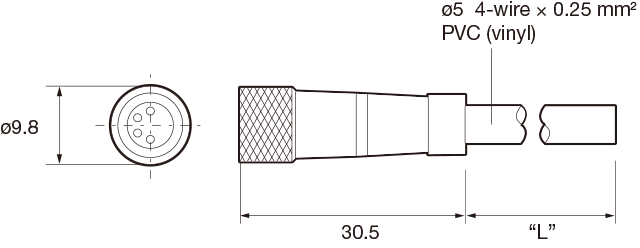

• JCN-S, JCN-5S, JCN-10S

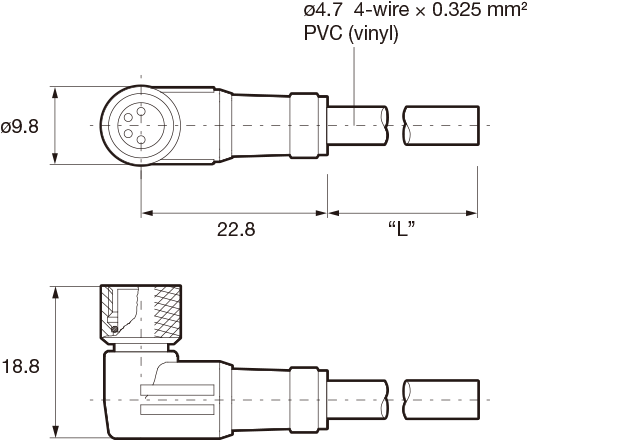

• JCN-L, JCN-5L, JCN-10L



Successor models

• M84CN-2S, M84CN-5S, M84CN-10S



• M84CN-2L, M84CN-5L, M84CN-10L



Notes for sensor usage

•

• ▪ Regarding the laser label, this product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. A CLASS 2/CLASS II warning label and explanation label (English) is affixed to the side of the sensor head.
  * The DSTC-200/-M8/DSTA-200/-M8 emitters DSTC- D/DSTA-D and DSTC-S/DSTA-S are Class II in FDA standards (when exported to the United States), but are Class 1 according to JIS/IEC standards, so change the label that they are packaged with for use.
