Circuit Diagram

I/O circuit diagram

D2SA-M☐S, D2SA-M☐, D2SA-S☐

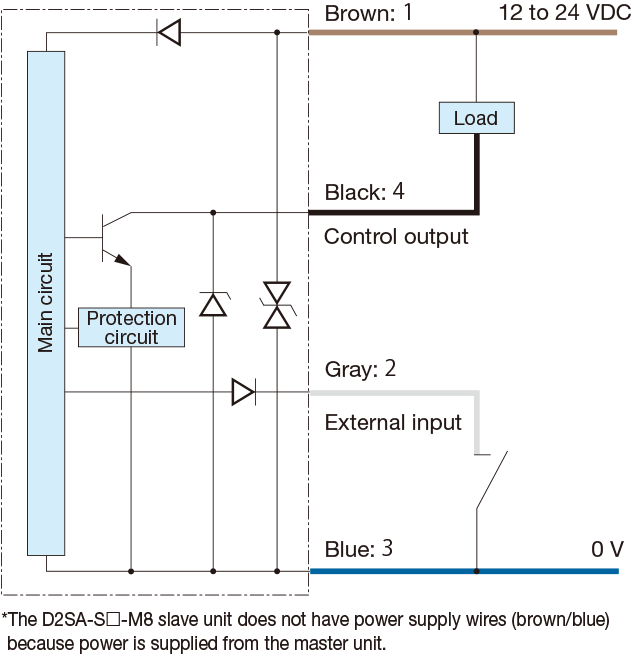

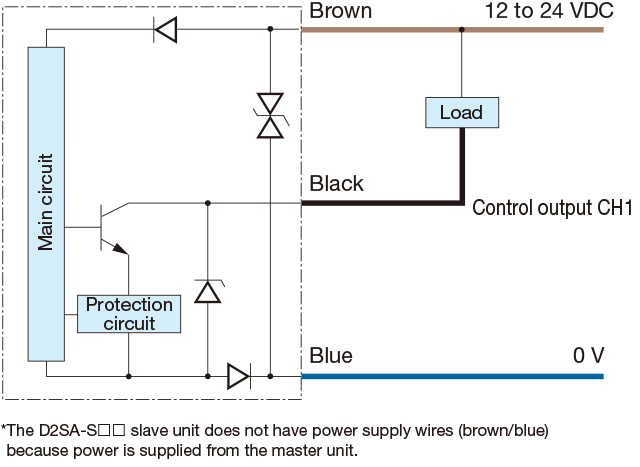

• NPN output type

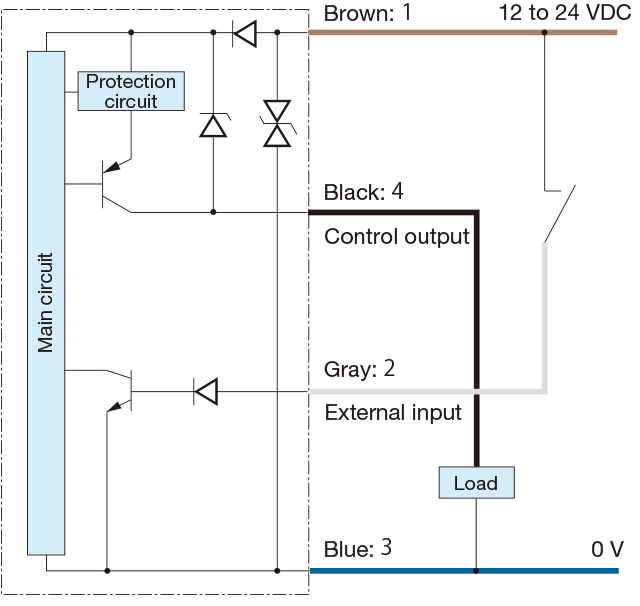

• PNP output type



D2SA-M☐3S, D2SA-M☐3, D2SA-S☐1

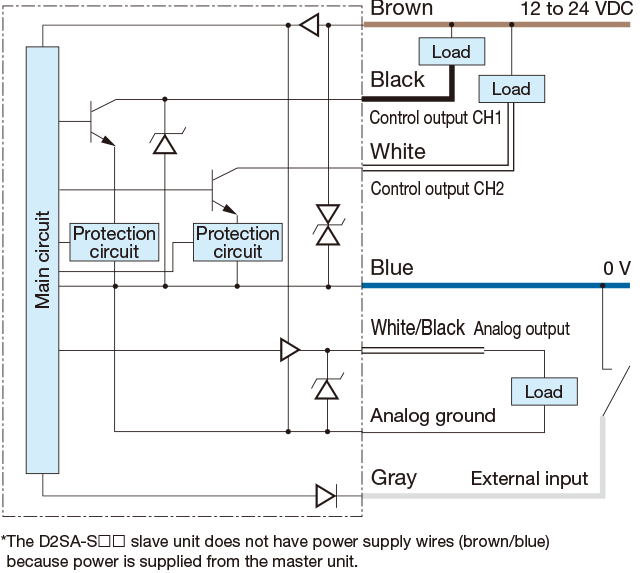

• NPN output type

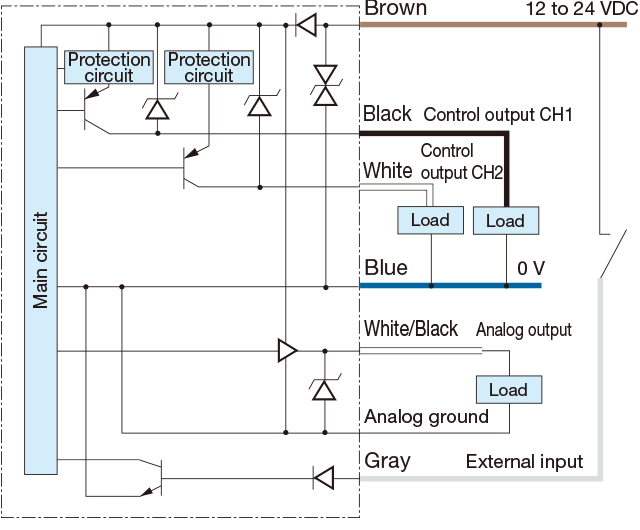

• PNP output type



D2SA-M☐S-M8, D2SA-M☐-M8, D2SA-S☐-M8

• NPN output type

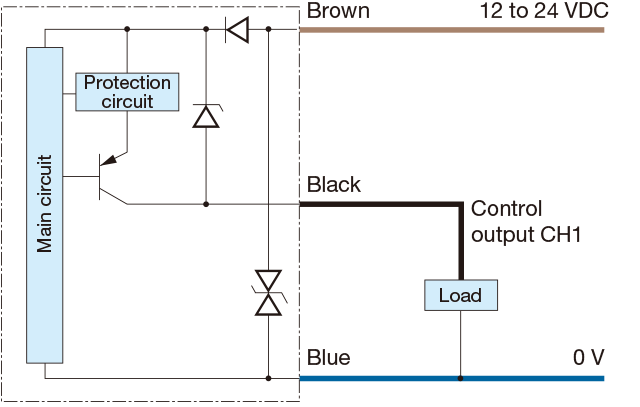

• PNP output type



• Connector type



• Connecting

  • When not used for external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.

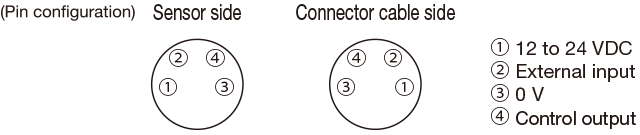

  • 1 to 4 correspond to connector pin No.

  Notes

  • Connect frame ground to the earth when the switching regulator is used for power bsupply.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state while the power is on (approx. 100 ms).
  • The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.
