Accessories

Options/Accessories

Reflector

•

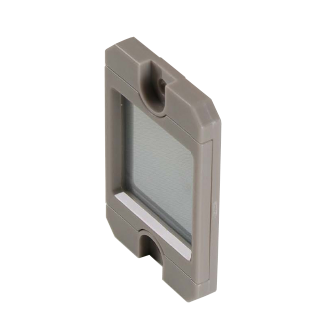

  MP-45

  Included with DSR-800 and DSR-5000

•

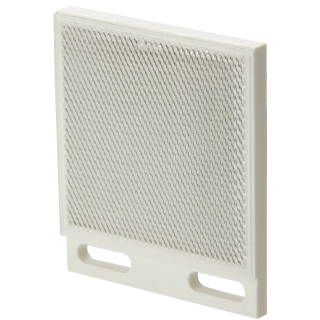

  P250F

  Included with DSR-5000

•

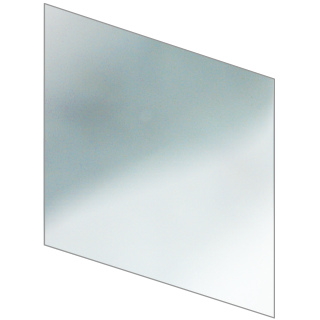

  MP225

  225 × 225 mm reflective sheet Can be cut to any size freely using scissors. (Adhesive type)

Connector cable discontinued and successor models of connector cables

Successor models

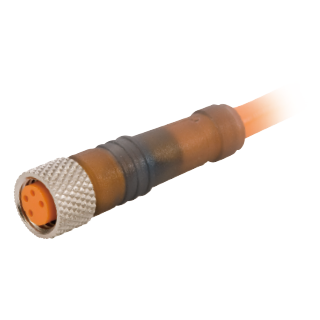

• Straight



  JCN-S

  Cable length: 2 m

  JCN-5S

  Cable length: 5 m

  JCN-10S

  Cable length: 10 m

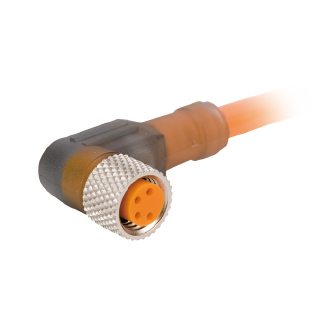

• L-shaped



  JCN-L

  Cable length: 2 m

  JCN-5L

  Cable length: 5 m

  JCN-10L

  Cable length: 10 m

• Straight



  M84CN-2S

  Cable length: 2 m

  M84CN-5S

  Cable length: 5 m

  M84CN-10S

  Cable length: 10 m

• L-shaped



  M84CN-2L

  Cable length: 2 m

  M84CN-5L

  Cable length: 5 m

  M84CN-10L

  Cable length: 10 m

Lens attachment

•

  BL-W130L-1

  Line beam approx. 40 × 1 mm (at a distance of 300 mm)
  Area beam approx. 35 × 35 mm (at a distance of 300 mm)

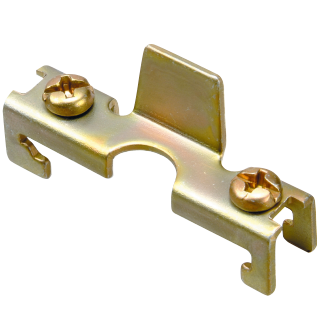

End plate

•

  BEF-EB01-W190

  (2 pieces)

Extension cable for emitter

• DSCN-T3-M8

  Cable length: 3 m
  Connects to the connector type through-beam type sensor head emitter, cable extends to 5 m.

• DSCN-D3-M8

  Cable length: 3 m
  Connects to the connector type through-beam type sensor head receiver, cable extends to 5 m.
