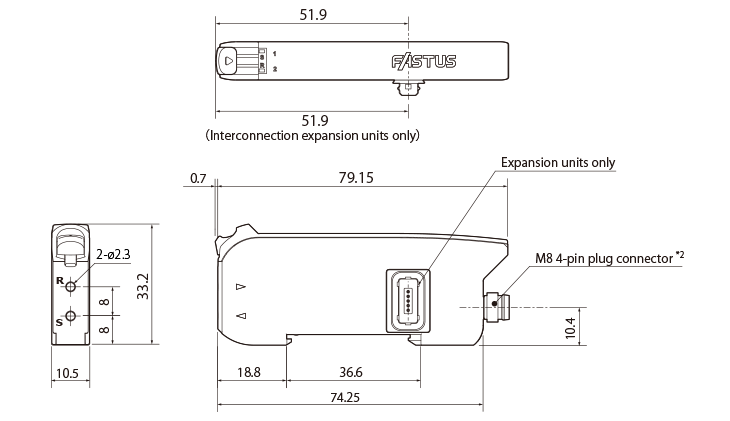

Dimensions

Stand-alone and Interconnection models with display and keys
(D4RF-TD/-TD-Y/-T/-T-Y/-TA/-TA-Y/-TDM/-TDM-Y/-TM/-TDS/-TDS-Y/-TS/-TC4/-TMC4/-TSC4/-TM-0/
-TS-0/D4IF-T/D4IF-TC4)

Connector type

Cable type

*1 D4RF-TM-0 and D4RF-TS-0 are not equipped with connectors or cables.

Interconnection models without display and keys
(D4RF-MC4/D4RF-S)

Connector type

*2 D4RF-S is not equipped with connectors and cables.

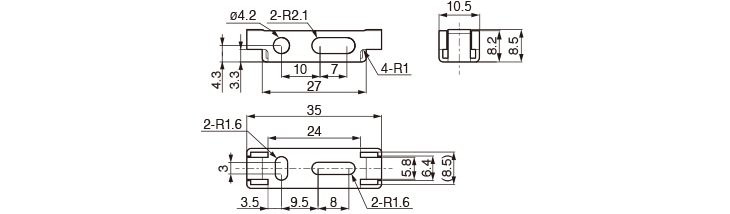

Mounting bracket

BEF-WLL180 (included item)

Connector cables (optional)

• M84CN-2S, M84CN-5S, M84CN-10S



  L = 2,000 (M84CN-2S)
  L = 5,000 (M84CN-5S)
  L = 10,000 (M84CN-10S)
  Cable material: PVC
  Lead wire: 4 cores x 0.25 mm²
  Minimum bending radius
  Cable diameter x 5 (when fixed in place)

• M84CN-2L, M84CN-5L, M84CN-10L



  L = 2,000 (M84CN-2L)
  L = 5,000 (M84CN-5L)
  L = 10,000 (M84CN-10L)
  Cable material: PVC
  Lead wire: 4 cores x 0.25 mm²
  Minimum bending radius
  Cable diameter x 5 (when fixed in place)
