Circuit Diagram

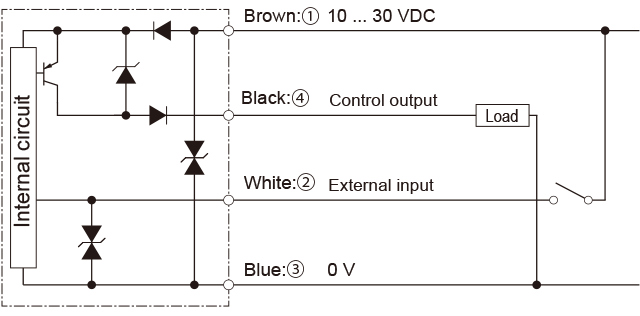

NPN setting

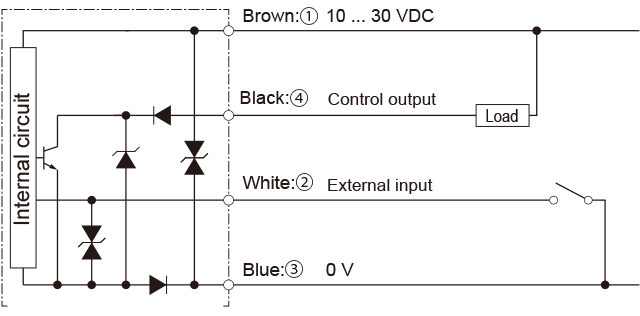

PNP or Push-pull setting

M8 connector pin

Connecting

• ① to ④ are connector pin No.
• Lead wires that are not in use should be wrapped individually with insulating tape, and do not connect it to any other terminal.

Notes

• When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
• Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
• Avoid using the transient state while the power is on (approx. 300 ms).
• The connector direction is fixed as the drawing below when you use L-shaped connector cable.
• Be aware that rotation is not possible.
