Specifications
| Part No. | 50963 |
|---|---|
| Model | NF25-T |
| Category | Thread type |
| Type | M4 Nut type |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head | M4 W7 x H9 x D14.4 mm |
| Sleeve | - |
| Optical axis diameter | ø1.8 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature | -40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, M4 Hex nut (Plastic) x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
 |
3,600 (8 ms) 3,600 (2 ms) 3,020 (1 ms) 2,685 (500 μs) 2,230 (250 μs) 1,455 (70 μs) 475 (16 μs/22 μs) |
 |
3,600 (4 ms) 3,020 (1 ms) 2,230 (250 μs) 930 (50 μs) |

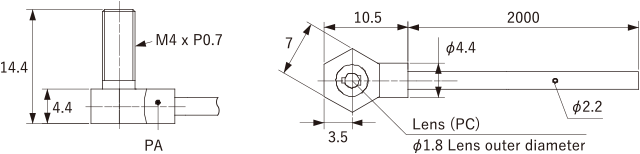

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
