Specifications
| Part No. | 50966 |
|---|---|
| Model | NF25-D |
| Category | Thread type |
| Type | M6 Nut type |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Side view |
| Shape of fiber head | M6 W10 x H11 x D14.4 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature | -40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 30 g |
| Included items | Fiber cutter, M6 Nut (Plastic) x 1 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
 |
700 (8 ms) 435 (2 ms) 305 (1 ms) 270 (500 μs) 220 (250 μs) 135 (70 μs) 40 (16 μs/22 μs) |
 |
590 (4 ms) 285 (1 ms) 200 (250 μs) 65 (50 μs) |
● The values on 1,000 x 1,000 mm white paper

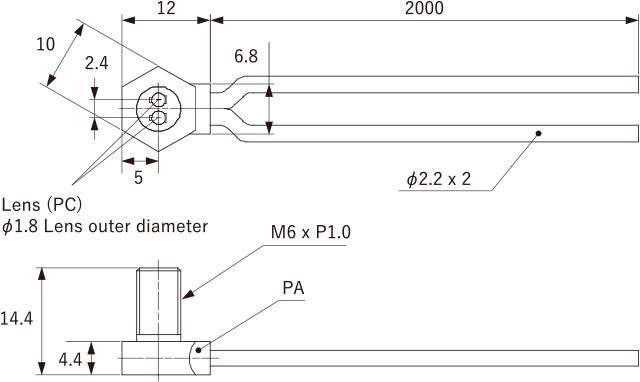

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
