Specifications
| Part No. | 17568 |
|---|---|
| Model | NF-TX01 |
| Category | Thread type |
| Type |
M12 Ultra-long range detection with large diameter lens |
| Detection method | Through-beam type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M12 27.2 mm long |
| Sleeve | - |
| Optical axis diameter | ø10.4 mm |
| Fiber length | 20 m |
| Free-cut | Possible |
| Min. bending radius | R30 mm |
| Degree of protection | IP67 |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 100g |
| Included items | Fiber cutter, M2 Hex nut x 4, Protective cup x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
38,000 (8 ms) 38,000 (2 ms) 38,000 (1 ms) 33,000 (500 μs) 28,000 (250 μs) 16,700 (70 μs) 6,000 (16 μs/22 μs) |
|
38,000 (4 ms) 38,000 (1 ms) 28,000 (250 μs) 9,000 (50 μs) |

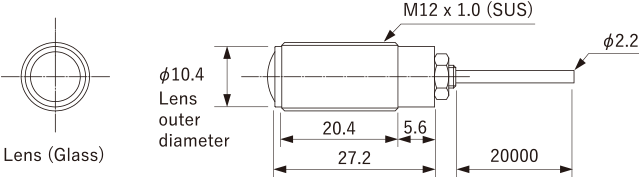

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
