NF Series Thread type

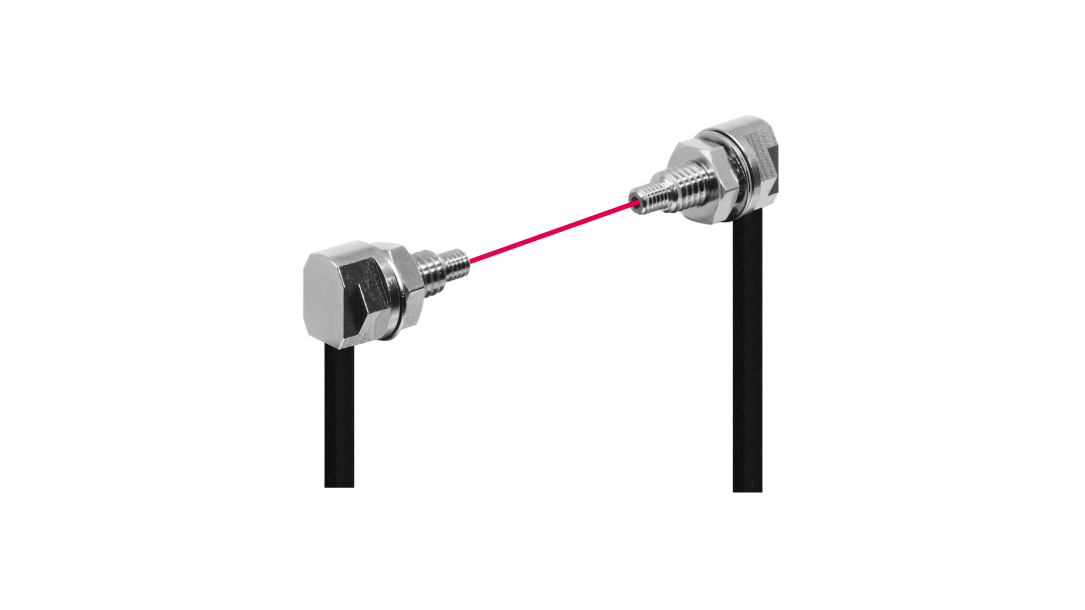

NF-TR4F

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	61766
Model	NF-TR4F
Category	Thread type Flexible type (R1 mm, R2 mm)
Type	M4 Nut type Lens attachable
Detection method	Through-beam type
Optical axis direction	Side view
Shape of fiber head	M4 W7 x H9 x D14.7 mm
Sleeve	-
Optical axis diameter	ø1.0 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R1 mm
Degree of protection	IP67
Ambient temperature	-40 ... +70°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	-
Weight
Included items	Fiber cutter, M4 Hex nut x 4, Toothed washer x 4

● The optical axis diameter is an approximate value.

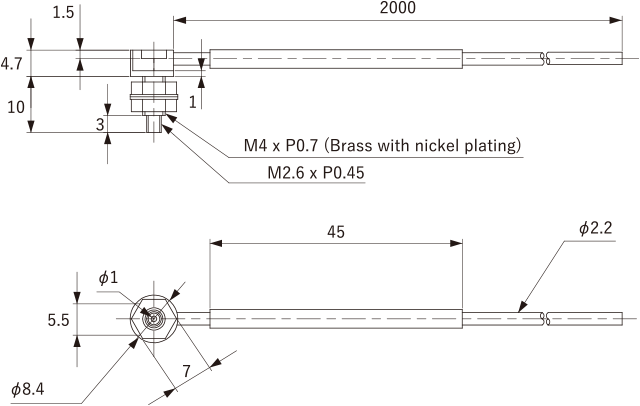

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,500 (8 ms) 3,500 (2 ms) 3,000 (1 ms) 2,100 (500 μs) 1,700 (250 μs) 1,000 (70 μs) 350 (16 μs/22 μs)		2,900 (4 ms) 1,875 (1 ms) 1,275 (250 μs) 435 (50 μs)

Unit: mm

Type	Part No.	Model
Fiber cutter	20228	NFC-F01
Attachment lens Long range lens	61775	NF-TA33
Attachment lens Utra-long range lens	61777	NF-TA34

Please refer to the Correct Use of all Fiber-Optic Cables.
