NF Series Thread type

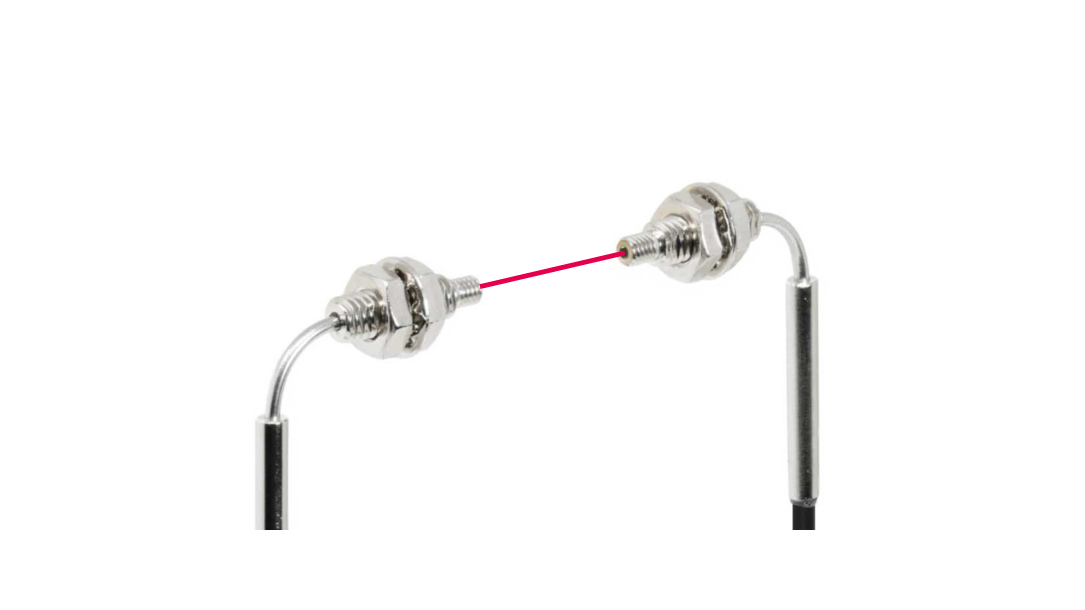

NF-TB06

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	51671
Model	NF-TB06
Category	Thread type
Type	M4 Elbow type Lens attachable
Detection method	Through-beam type
Optical axis direction	Straight view
Shape of fiber head	M4 14 mm long
Sleeve	-
Optical axis diameter	ø1.0 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R25 mm
Degree of protection	-
Ambient temperature	-40 ... +70°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight
Included items	Fiber cutter, M4 Hex nut x 4, Toothed washer x 2

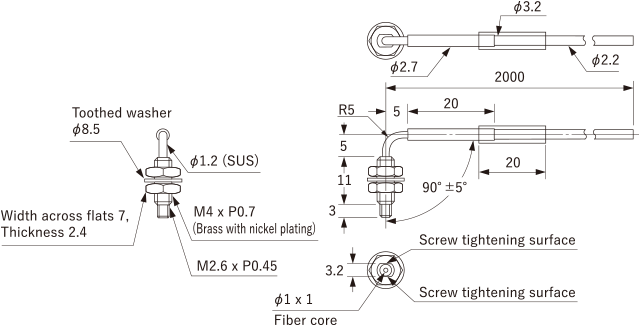

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	2,820 (8 ms) 1,945 (2 ms) 1,550 (1 ms) 1,370 (500 μs) 1,015 (250 μs) 680 (70 μs) 230 (16 μs/22 μs)		2,820 (4 ms) 1,550 (1 ms) 1,015 (250 μs) 420 (50 μs)

Unit: mm

Type	Part No.	Model
Fiber cutter	20228	NFC-F01
Fiber adapter ø1.3 mm	20189	BF-WLL160-1.3
Attachment lens Long range lens	12236	NF-TA01
Attachment lens Long range lens	54649	NF-TA03
Attachment lens Long range lens	50226	NF-TA01S
Attachment lens Ultra-long range lens	54650	NF-TA04

Please refer to the Correct Use of all Fiber-Optic Cables.
