Specifications
| Part No. | 56516 |
|---|---|

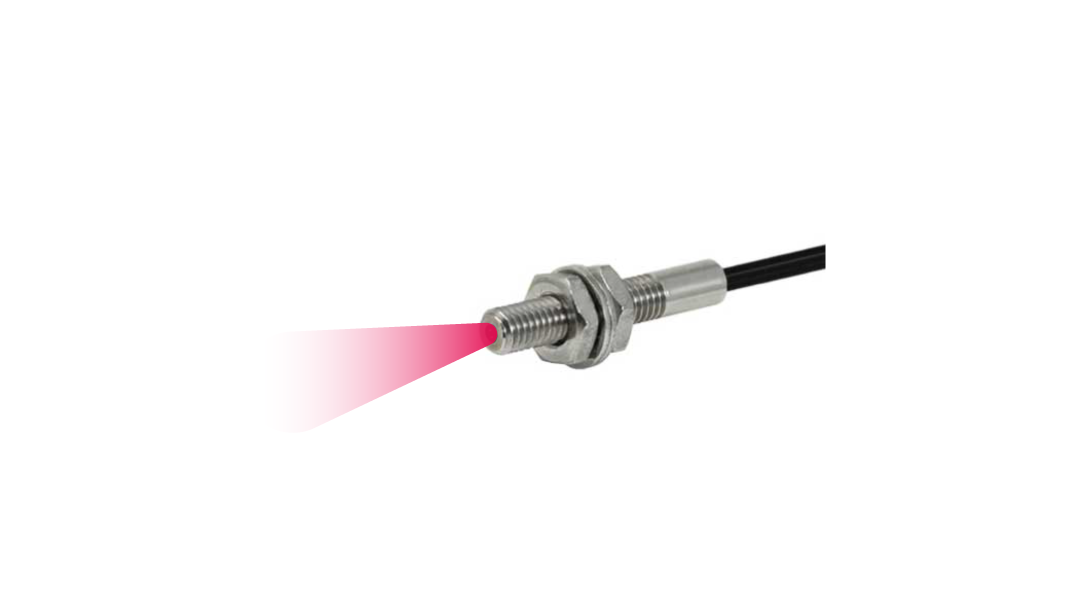

| Model | NF-DT01 |
| Category | Thread type |
| Type |
M3 Coaxial Lens attachable |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M3 18 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R15 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, ø1.3 mm Fiber adapter x 2, M3 Hex nut x 2, Toothed washer x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
710 (8 ms) 505 (2 ms) 380 (1 ms) 320 (500 μs) 265 (250 μs) 170 (70 μs) 45 (16 μs/22 μs) |
|
600 (4 ms) 365 (1 ms) 245 (250 μs) 70 (50 μs) |
● The values on 500 x 500 mm white paper

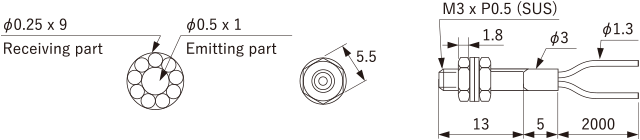

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.3 mm |
 |
20189 | BF-WLL160-1.3 |
