Specifications
| Part No. | 51652 |
|---|---|
| Model | NF-DJ01 |
| Category | Thread type |
| Type |
M3 Coaxial Metal sheath |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M3 18 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 1 m |
| Free-cut | Possible |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 10 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 1, ø1.3 mm Fiber adapter x 1, M3 Hex nut x 2, Toothed washer x 1 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
790 (8 ms) 530 (2 ms) 405 (1 ms) 335 (500 μs) 295 (250 μs) 185 (70 μs) 50 (16 μs/22 μs) |
|
780 (4 ms) 390 (1 ms) 275 (250 μs) 100 (50 μs) |
● The values on 500 x 500 mm white paper

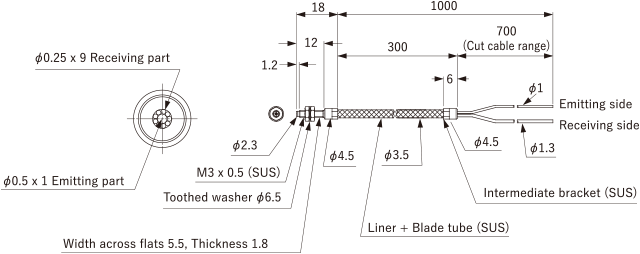

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
| Fiber adapter ø1.3 mm |
 |
20189 | BF-WLL160-1.3 |
