- Some models in this product series have been discontinued.
Models
Through-beam type
| Type | Model | Shape of fiber head [mm] |
Optical axis direction |
Optical axis diameter [mm] |
Fiber length |
Min. bending radius [mm] |
Ambient temperature [℃] |
Degree of protection |
|---|---|---|---|---|---|---|---|---|

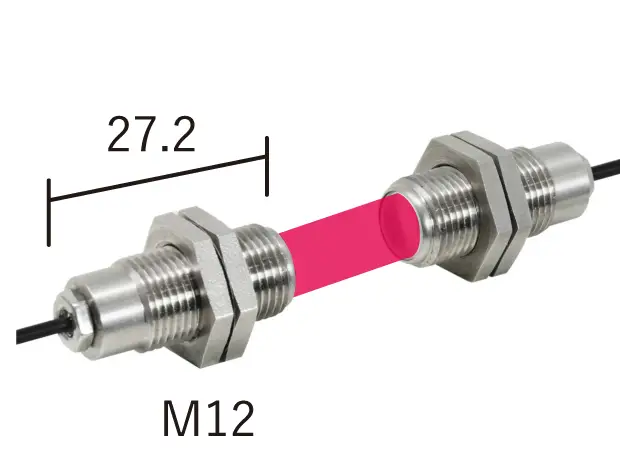

| M12 Ultra-long range detection with large diameter lens |
NF-TX01 |  |
Straight view | ø10.4 | 20 m Free-cut |
R30 | -40 ... +70 | IP67 |
| M4 Lens attachable |
NF-TB01 |  |
Straight view | ø1.5 | 2 m Free-cut |
R40 | -40 ... +70 | - |
| NF-TB02 |  |
Straight view | ø1.0 | 2 m Free-cut |
R25 | -40 ... +70 | - | |
| M4 Nut type |
NF-TR14 |  |
Straight view/ Side view switchable type |
ø1.0 | 2 m Free-cut |
R2 | -55 ... +70 | - |
| NF25-T |  |
Side view | ø1.8 | 2 m Free-cut |
R25 | -40 ... +70 | - | |
| M4 Elbow type Lens attachable |
NF-TB06 |  |
Straight view | ø1.0 | 2 m Free-cut |
R25 | -40 ... +70 | - |
| Ｍ4 Nut type Lens attachable |
NF-TR4F |  |
Side view | ø1.0 | 2 m Free-cut |
R1 | -40 ～ ＋70 | IP67 |
| M3 | NF-TM01 |  |
Straight view | ø1.0 | 2 m Free-cut |
R25 | -40 ... +70 | - |
| NF-TM02 |  |
Straight view | ø0.5 | 2 m Free-cut |
R15 | -40 ... +70 | - |
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
•The optical axis diameter is an approximate value.
Diffuse-reflective type
| Type | Model | Shape of fiber head [mm] |
Optical axis direction |
Fiber length |
Min. bending radius [mm] |
Ambient temperature [℃] |
Degree of protection |
|---|---|---|---|---|---|---|---|
| M6 | NF-DK06 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +70 | - |
| M6 Coaxial |
NF-DB01 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +70 | - |
| NF-DB03 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +70 | - | |
| NF-DB04 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +70 | - | |
| M6 Nut type |
NF25-D |  |
Side view | 2 m Free-cut |
R25 | -40 ... +70 | - |
| M6 Elbow type |
NF-DB09 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +70 | - |
| M4 | NF-DM01 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +70 | - |
| M4 Coaxial Lens attachable |
NF-DM02 |  |
Straight view | 2 m Free-cut |
R15 | -40 ... +70 | - |
| NF-DM02-G4 |  |
Straight view | 2 m Free-cut |
R15 | -40 ... +70 | - | |
| M3 | FD-TT2 |  |
Straight view | 2 m Free-cut |
R15 | -40 ... +70 | - |
| NF-DS06 |  |
Straight view | 2 m Free-cut |
R15 | -40 ... +70 | - | |
| M3 Coaxial Lens attachable |
NF-DT01 |  |
Straight view | 2 m Free-cut |
R15 | -40 ... +70 | - |
| M3 Coaxial |
NF-DB07 |  |
Straight view | 2 m Free-cut |
R25 | -40 ... +60 | - |
| M3 Coaxial Lens attachable |
NF-DK21 |  |
Straight view | 0.5 m | R5 | -40 ... +70 | - |
| M3 Coaxial Metal sheath |
NF-DJ01 |  |
Straight view | 1 m | R10 | -40 ... +60 | - |
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
