Specifications
| Part No. | 51684 |
|---|---|
| Model | NF-TG05 |
| Category |
Cylindrical type Flexible type (R1 mm, R2 mm) Sleeve/Side view type |
| Type |
ø2 Thin sleeve |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
ø2 mm 15 mm long |
| Sleeve |
ø1 mm 15 mm long |
| Optical axis diameter | ø0.5 mm |
| Fiber length | 2m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 4 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
480 (8 ms) 310 (2 ms) 220 (1 ms) 190 (500 μs) 160 (250 μs) 105 (70 μs) 35 (16 μs/22 μs) |
|
430 (4 ms) 195 (1 ms) 130 (250 μs) 40 (50 μs) |

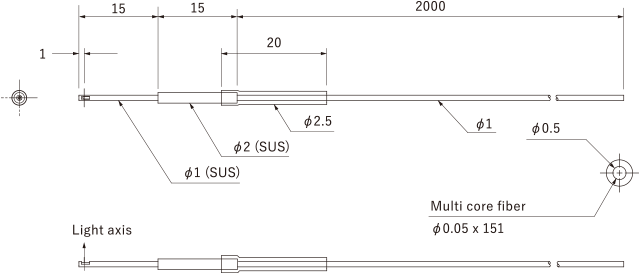

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
Correct Use
