Specifications
| Part No. | 12232 |
|---|---|
| Model | NF-DR05 |
| Category |
Cylindrical type Sleeve/Side view type Flexible type |
| Type | ø3 |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
ø3 mm 15 mm long |
| Sleeve |
ø0.82 mm 5 mm long |
| Optical axis diameter | - |
| Fiber length | 0.5 m |
| Free-cut | - |
| Min. bending radius | R4 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 34 g |
| Included items | - |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
240 (8 ms) 150 (2 ms) 95 (1 ms) 80 (500 μs) 65 (250 μs) 35 (70 μs) 10 (16 μs/22 μs) |
|
220 (4 ms) 95 (1 ms) 55 (250 μs) 20 (50 μs) |
● The values on 500 x 500 mm white paper

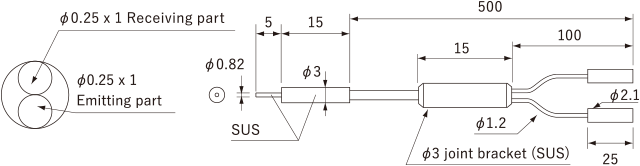

Dimensions
Unit: mm
Correct Use
