Specifications
| Part No. | 14491 |
|---|---|
| Model | NF-DK04 |
| Category | Cylindrical type |
| Type | ø3 |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
ø3 mm 17 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,250 (8 ms) 800 (2 ms) 700 (1 ms) 600 (500 μs) 500 (250 μs) 300 (70 μs) 120 (16 μs/22 μs) |
|
12,580 (4 ms) 700 (1 ms) 500 (250 μs) 200 (50 μs) |
● The values on 500 x 500 mm white paper

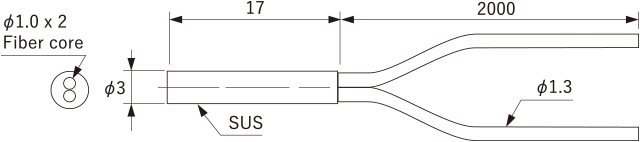

Dimensions
Unit: mm
